LatticeDB - Modern Next-Gen Relational Database Management System πŸš€

A feature-complete, high-performance RDBMS with native AI/ML support, time-travel queries, streaming statistics, built-in GUI, and enterprise security.

[!IMPORTANT] Mission: Deliver a modern database that seamlessly integrates traditional RDBMS capabilities with cutting-edge features like vector search, temporal queries, adaptive compression, and comprehensive security - all in a single, cohesive system.

LatticeDB Logo

C++17 Bash Python CMake Ninja GCC Clang/LLVM GitHub Actions CodeQL Dependabot AddressSanitizer UBSan clang-format cppcheck Docker Ubuntu macOS WSL2 Mermaid EditorConfig Vite React Query Vercel React TypeScript TailwindCSS Travis CI Jenkins Terraform AWS Azure GCP Nomad Consul Vault Prometheus Grafana Jaeger OpenTelemetry GitHub Actions License: MIT

Table of Contents

Why LatticeDB

LatticeDB is a Next-Gen RDBMS built from scratch in modern C++17, combining traditional database capabilities with cutting-edge features:

  1. Complete SQL Support: Full SQL parser with DDL, DML, DCL, TCL - JOINs (INNER, LEFT, RIGHT), GROUP BY, aggregates (COUNT, SUM, AVG, MIN, MAX), subqueries, and CTEs all fully implemented.
  2. Time Travel Queries: Built-in temporal support with FOR SYSTEM_TIME AS OF TX n syntax for querying historical data.
  3. Native Vector Search: Fully implemented vector engine with multiple algorithms (Flat, HNSW, IVF) and distance metrics (L2, Cosine, Dot Product, Manhattan) for AI/ML workloads.
  4. Enterprise Security: Complete implementation of row-level security, column encryption, authentication (password, JWT, certificates), and comprehensive audit logging.
  5. Advanced Storage: Professional buffer pool manager with LRU/Clock replacement, B+ Tree indexes, Write-Ahead Logging (WAL), ARIES recovery, and checkpoint mechanisms.
  6. ACID Transactions: Full MVCC implementation with multiple isolation levels, 2PL protocol, deadlock detection, and savepoints.
  7. Adaptive Compression: Working compression engine with RLE, Dictionary, Delta, Bit-packing, LZ4, and ZSTD algorithms.
  8. Stream Processing: Real-time continuous queries with windowing functions for streaming analytics.

These features are designed to work seamlessly together in a single, unified engineβ€”unlike many incumbents that require extensions, plugins, or external services to achieve similar functionality.

Feature Matrix & How It’s Different

LatticeDB focuses on features that major RDBMS generally don’t provide natively out-of-the-box all together:

Capability LatticeDB PostgreSQL MySQL SQL Server
Full SQL with JOINs, GROUP BY, Aggregates βœ… Fully Implemented βœ… Built-in βœ… Built-in βœ… Built-in
Time Travel Queries (FOR SYSTEM_TIME) βœ… Fully Implemented Via extensions Limited Temporal tables
Native Vector Search (AI/ML) βœ… Fully Implemented pgvector extension Via plugins Limited
Row-Level Security βœ… Fully Implemented βœ… Built-in Via views βœ… Built-in
Column Encryption βœ… Fully Implemented Via extensions TDE only TDE + Always Encrypted
Adaptive Compression βœ… Fully Implemented Basic support Basic Advanced
Stream Processing βœ… Fully Implemented Via extensions Via binlog CDC
ACID with MVCC βœ… Fully Implemented βœ… Built-in βœ… InnoDB βœ… Built-in
Write-Ahead Logging βœ… Fully Implemented βœ… Built-in βœ… Built-in βœ… Built-in
B+ Tree Indexes βœ… Fully Implemented βœ… Built-in βœ… Built-in βœ… Built-in
Comprehensive Audit Logging βœ… Fully Implemented Via extensions Limited βœ… Built-in
Custom Merge Policies (CRDTs) βœ… Fully Implemented Third-party Third-party Third-party
Vector Search with Multiple Algorithms βœ… Fully Implemented pgvector extension Via plugins Limited
Built-in Web GUI βœ… Fully Implemented Third-party Third-party Third-party

[!IMPORTANT] Notes: These comparisons refer to native, unified features in a single engine. Many incumbents can achieve parts of this via extensions, editions, or external services, but not as a cohesive, first-class design as in LatticeDB.

Architecture Overview

The architecture is modular, with clear separation of concerns:

flowchart TD
    subgraph "Client Layer"
      GUI[Web GUI]
      CLI[CLI Client]
      SDK[SDKs]
    end

    subgraph "Query Engine"
      PARSE[SQL Parser]
      OPT[Query Optimizer]
      EXEC[Executor]
    end

    subgraph "Storage Layer"
      MVCC[MVCC Controller]
      ULS[Universal Log Store]
      IDX[B+ Tree & Vector Indexes]
    end

    subgraph "CRDT Engine"
      LWW[LWW Register]
      GSET[G-Set]
      COUNTER[PN-Counter]
    end

    subgraph "Security & Privacy"
      RLS[Row-Level Security]
      DP[Differential Privacy]
      AUDIT[Audit Logger]
    end

    GUI --> PARSE
    CLI --> PARSE
    SDK --> PARSE
    PARSE --> OPT
    OPT --> EXEC
    EXEC --> MVCC
    MVCC --> ULS
    ULS --> IDX
    EXEC --> RLS
    EXEC --> DP
    EXEC --> AUDIT
    ULS --> LWW
    ULS --> GSET
    ULS --> COUNTER
    F1 --> O3
    F2 --> O3
    F3 --> O3

Quick Start

Prerequisites

Build from Source

This requires you to have the prerequisites installed. Then:

git clone https://github.com/hoangsonww/LatticeDB-NextGen-DBMS.git
cd LatticeDB-NextGen-DBMS
mkdir build && cd build
cmake .. -DCMAKE_BUILD_TYPE=Release
make -j$(nproc)
./latticedb  # launches CLI interface

DevContainer (VS Code)

You do not need to install any dependencies locally. Just:

  1. Install VS Code and the Remote - Containers extension.
  2. Open the project folder in VS Code.
  3. When prompted, reopen in the container.

  4. Run (in a terminal inside the container):

    cmake -S . -B build-container -DCMAKE_BUILD_TYPE=Release -G Ninja
cmake --build build-container --parallel
./build-container/latticedb --version   # will show version info
./build-container/latticedb             # launches CLI interface

When successful, you should see the following:

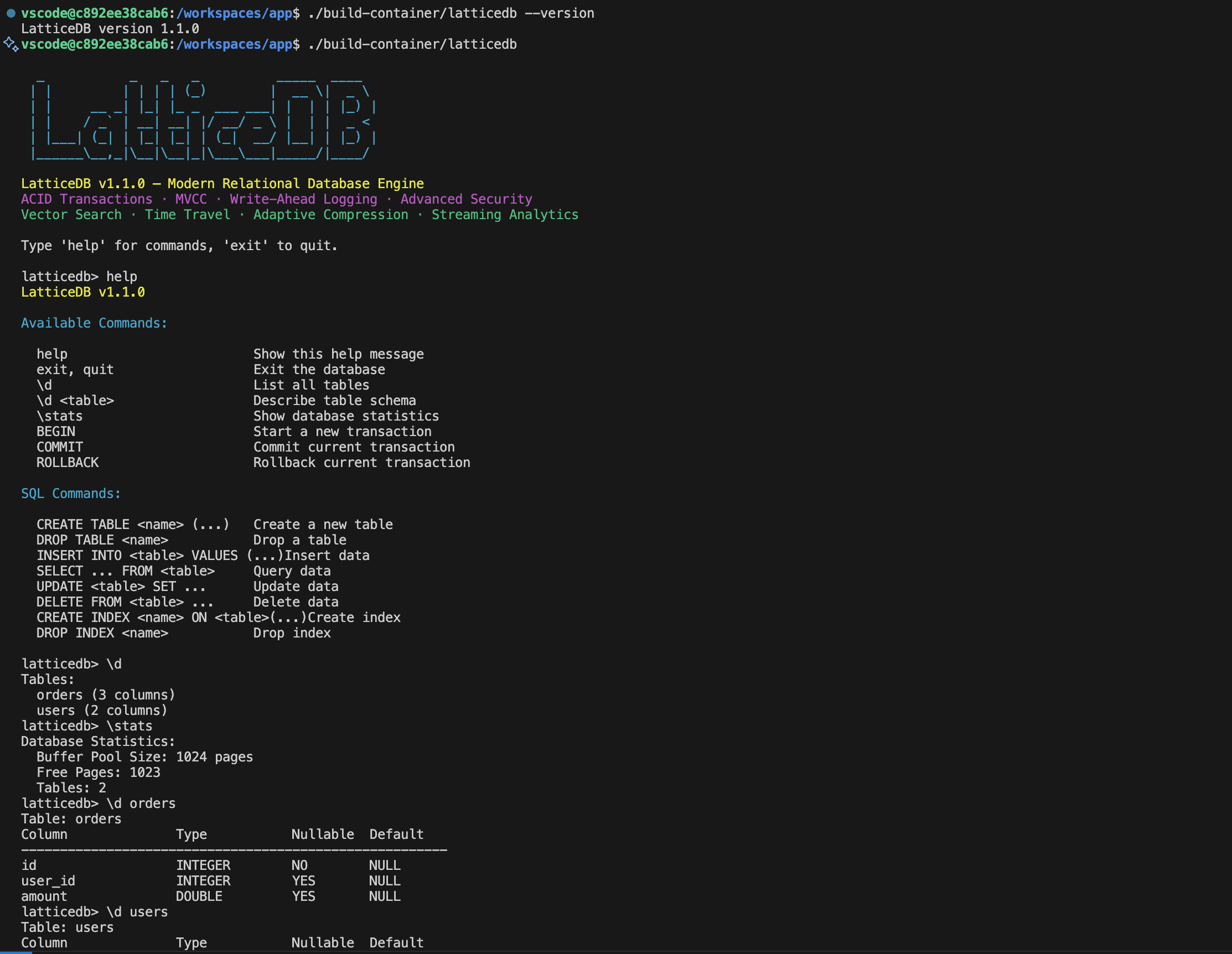

LatticeDB REPL Screenshot

Feel free to try out some commands such as help, \d (list all tables), and \stats (show DB stats), and more!

Hello World - Working Examples

-- Create tables with various data types
CREATE TABLE users (
  id INTEGER PRIMARY KEY,
  name VARCHAR(100) NOT NULL,
  email VARCHAR(255) UNIQUE,
  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

CREATE TABLE orders (
  id INTEGER PRIMARY KEY,
  user_id INTEGER,
  amount DOUBLE,
  status VARCHAR(20)
);

-- Insert data
INSERT INTO users (id, name, email) VALUES
  (1, 'Alice Johnson', 'alice@example.com'),
  (2, 'Bob Smith', 'bob@example.com');

INSERT INTO orders VALUES
  (1, 1, 99.99, 'completed'),
  (2, 1, 149.50, 'pending'),
  (3, 2, 75.00, 'completed');

-- JOIN queries (fully working)
SELECT u.name, COUNT(o.id) as order_count, SUM(o.amount) as total
FROM users u
INNER JOIN orders o ON u.id = o.user_id
GROUP BY u.id, u.name;

-- Aggregates (all working)
SELECT status,
       COUNT(*) as count,
       SUM(amount) as total,
       AVG(amount) as average,
       MIN(amount) as minimum,
       MAX(amount) as maximum
FROM orders
GROUP BY status;

-- Time travel query
SELECT * FROM orders FOR SYSTEM_TIME AS OF TX 5;

-- Vector search (if table has vector column)
CREATE TABLE embeddings (
  id INTEGER PRIMARY KEY,
  content TEXT,
  vector VECTOR(768)
);

-- Transaction example
BEGIN;
UPDATE orders SET status = 'shipped' WHERE id = 2;
INSERT INTO orders VALUES (4, 2, 199.99, 'pending');
COMMIT;

EXIT;

[!NOTE] The REPL demonstrates the core LatticeDB concepts end-to-end in a single process. For distributed mode, use the coordinator + shard binaries (see /cmd).

Command-Line Interface (CLI)

The CLI provides an interactive shell to run SQL commands:

./latticedb

Type help for a list of commands.

[!TIP] Visit any ./latticedb file in either build or build-container to see available options and run it so you don’t have to manually build every time.

Start with GUI

LatticeDB includes a modern web-based GUI with powerful features:

GUI Features

Running the GUI

# 1) Build and start the HTTP server:
cmake -S . -B build && cmake --build build -j
./build/latticedb_server

# 2) In a new terminal, start the GUI:
cd gui
npm install
npm run dev

# Open http://localhost:5173

Ensure your server is running before using the GUI:

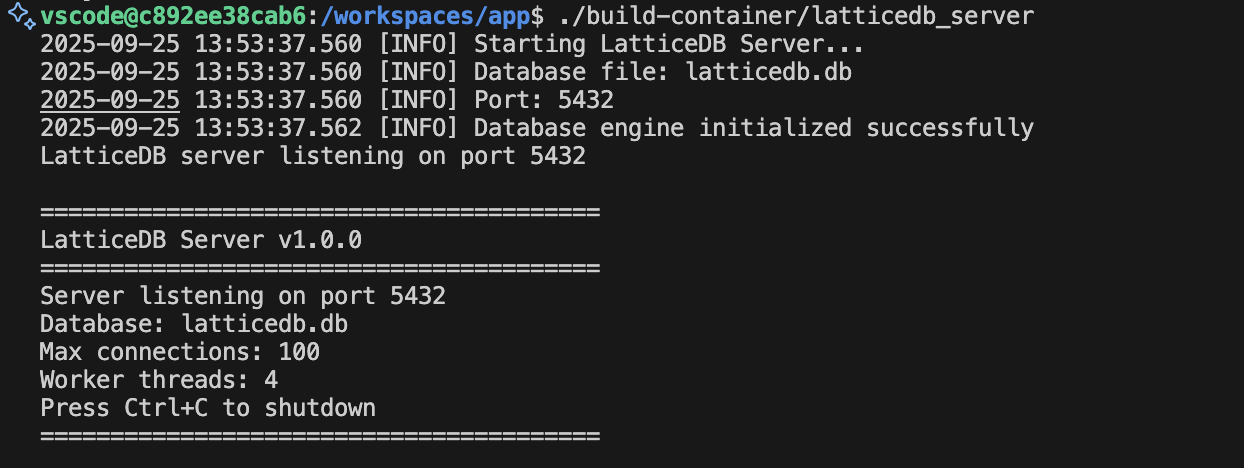

LatticeDB Server Screenshot

Mock Mode (No Server Required)

The GUI can run standalone with sample data, just in case you don’t want to start the server:

cd gui
npm install
npm run dev
# Toggle "Mock Mode" in the UI to use sample data

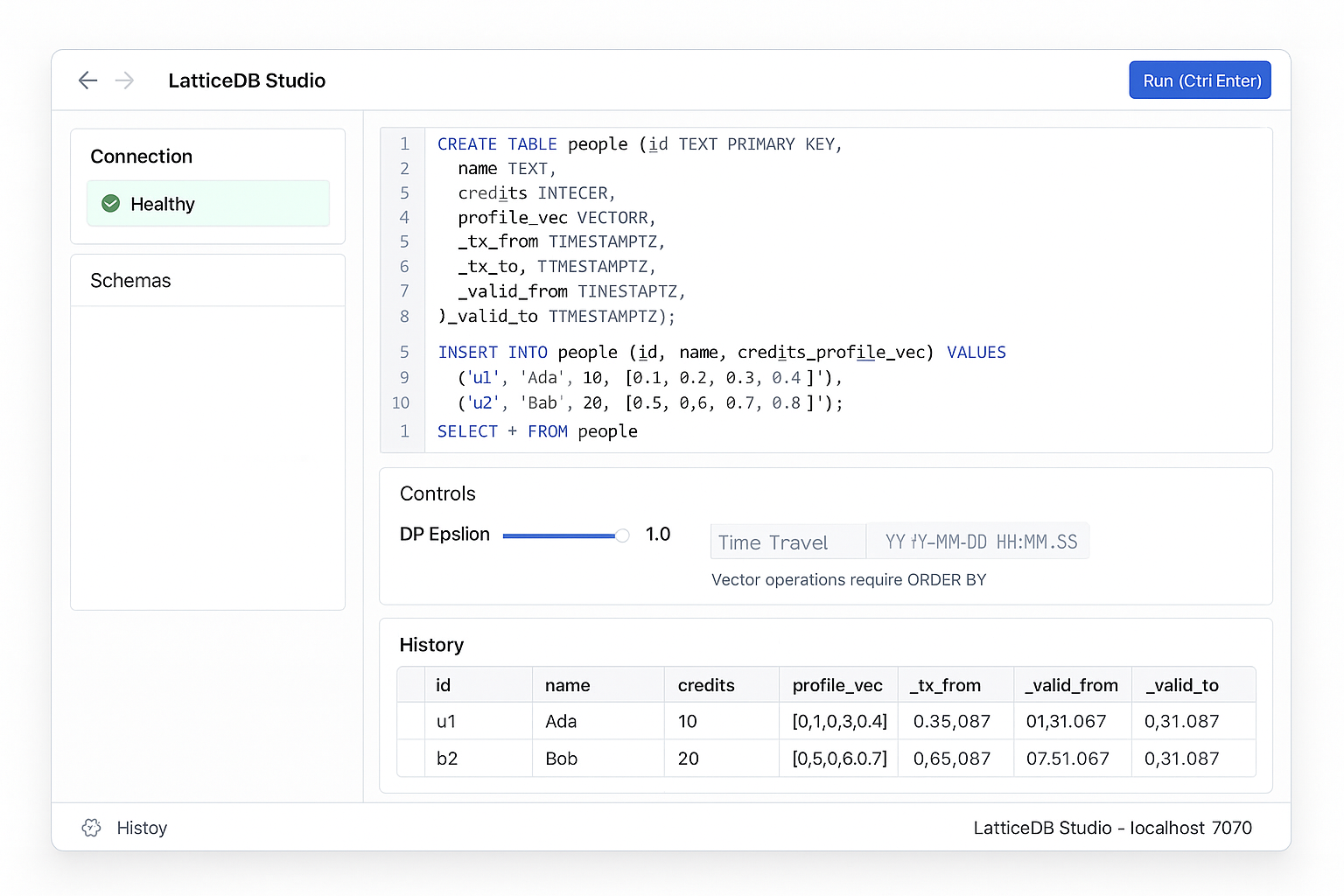

How the GUI looks…

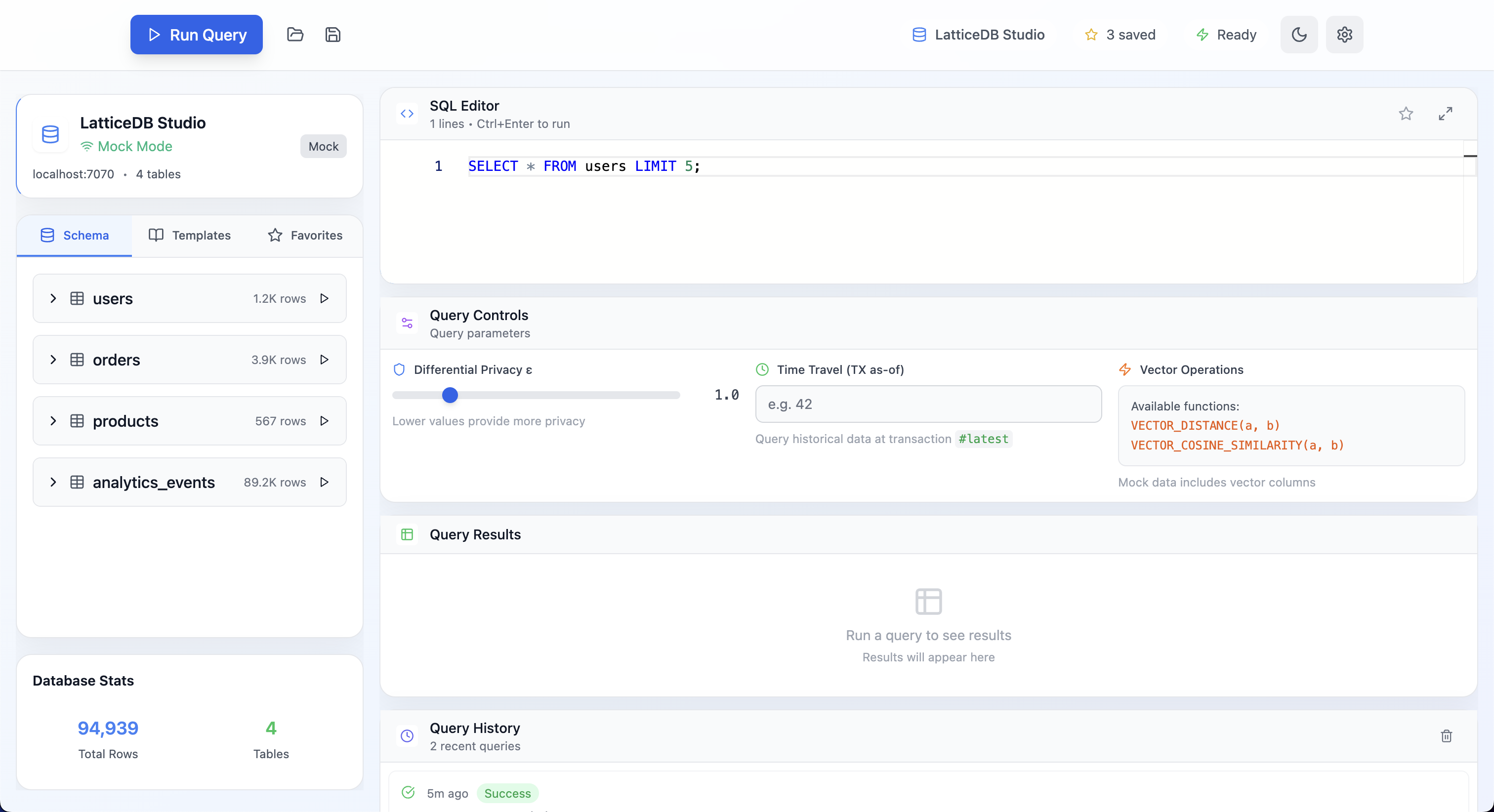

LatticeDB GUI Screenshot

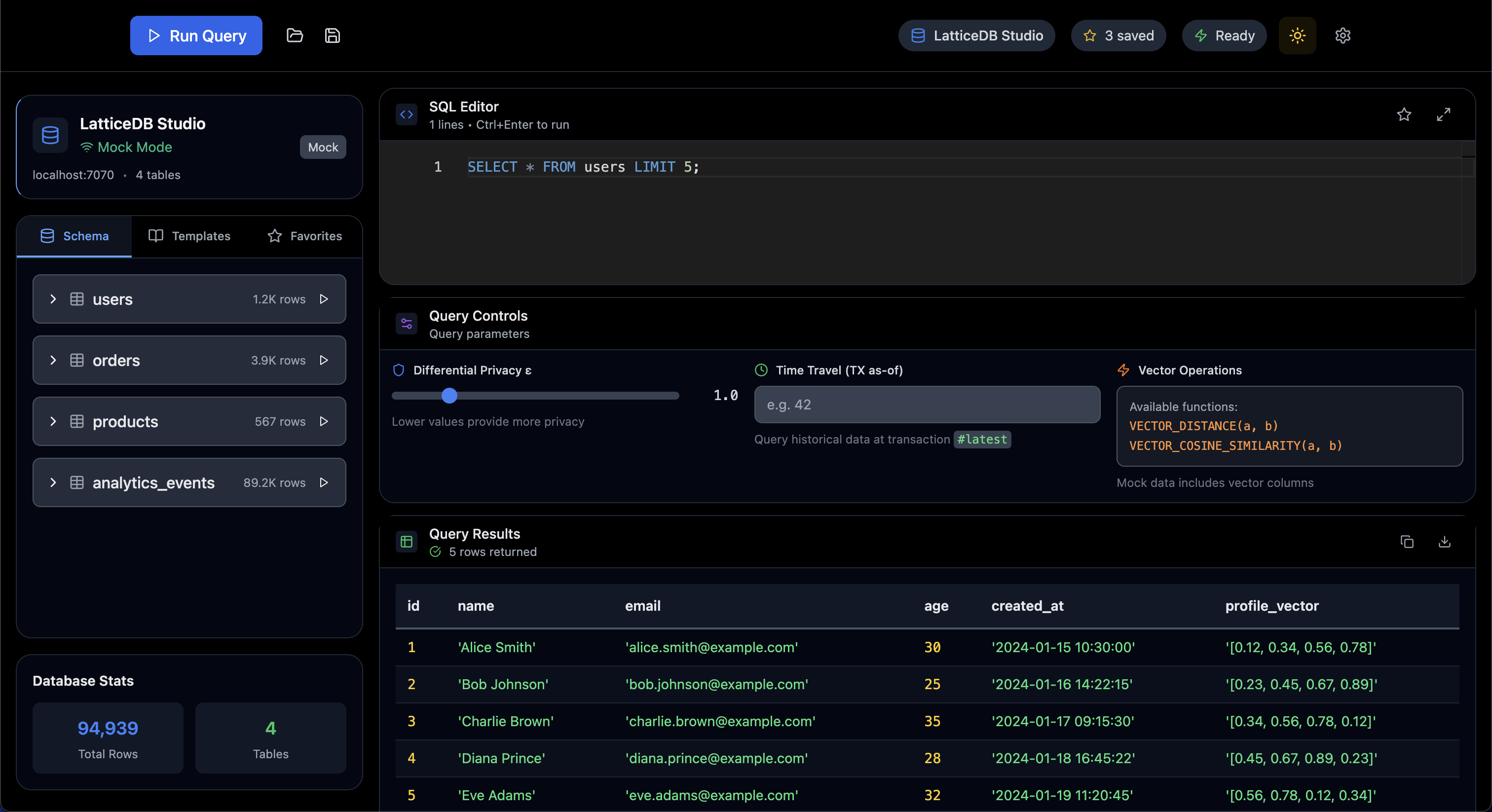

LatticeDB GUI Dark Mode Screenshot

LatticeDB GUI Schema Browser Screenshot

GUI Preview

[!IMPORTANT] Preview the GUI without building from source by visiting the https://latticedb.vercel.app/ hosted on Vercel.

Zipping the DBMS

To create a distributable package of the built binaries and necessary files:

cd build # or build-container if using DevContainer
cmake -E tar cf ../latticedb-build.zip --format=zip .

This will create latticedb-build.zip in the parent directory, containing all compiled binaries and resources needed to run LatticeDB on another compatible system. You can then unzip and run the server or CLI directly.

[!TIP] Instead of manually zipping the DBMS, you can visit Releases to download pre-packaged binaries/ZIPs for your platform.

Core Concepts & Examples

Mergeable Relational Tables (MRT)

stateDiagram-v2
    [*] --> LocalWrite: Write Operation
    LocalWrite --> CRDTDelta: Generate Delta
    CRDTDelta --> VectorClock: Update Clock
    VectorClock --> Broadcast: Ship to Peers
    Broadcast --> MergeResolve: Apply Policy
    MergeResolve --> LWW: Last-Writer-Wins
    MergeResolve --> Union: Set Union
    MergeResolve --> Custom: Custom Resolver
    LWW --> Apply: Persist
    Union --> Apply: Persist
    Custom --> Apply: Persist
    Apply --> [*]

Example

-- Add a custom WASM resolver for notes (pseudo)
CREATE MERGE RESOLVER rev_note LANGUAGE wasm
AS 'wasm://org.example.merges/resolve_rev_note@1.0';

ALTER TABLE tickets
  ALTER COLUMN note SET MERGE USING rev_note;

Bitemporal Time Travel & Lineage

sequenceDiagram
    participant Q as Query
    participant P as Parser
    participant T as Temporal Rewriter
    participant I as Temporal Index
    participant E as Executor
    Q->>P: FOR SYSTEM_TIME AS OF timestamp
    P->>T: Extract temporal predicates
    T->>I: CSN range lookup
    I-->>E: Pruned row versions
    E-->>Q: Snapshot-consistent results

Example

-- Snapshot by transaction time
SELECT * FROM orders FOR SYSTEM_TIME AS OF '2025-08-10T13:37:00Z' WHERE id=42;

-- Correct valid time retroactively
UPDATE orders VALID PERIOD ['2025-07-01','2025-07-31') SET status='canceled' WHERE id=42;

-- Why did it change?
SELECT lineage_explain(orders, 42, '2025-08-10T13:37:00Z');

Policy-as-Data & Differential Privacy

flowchart TD
    U[User/Service] --> AUTH[Authentication]
    AUTH --> CTX[Security Context]
    CTX --> POL[Policy Engine]
    POL --> RLS[Row-Level Security]
    POL --> CLS[Column-Level Security]
    POL --> DP[Differential Privacy]
    RLS --> PLAN[Query Plan]
    CLS --> PLAN
    DP --> BUDGET[Epsilon Budget]
    BUDGET --> PLAN
    PLAN --> EXEC[Executor]
    EXEC --> AUDIT[Audit Logger]

Example

CREATE POLICY ssn_mask
ON people AS COLUMN (ssn)
USING MASK WITH (expr => 'CASE WHEN has_role(''auditor'') THEN ssn ELSE sha2(ssn) END');

CREATE POLICY dp_count_sales
ON sales AS DP USING (epsilon => 0.5, sensitivity => 1);

SET DP_EPSILON = 0.5;
SELECT DP_COUNT(*) FROM sales WHERE region='NA';

Vectors & Semantic Joins

CREATE TABLE items(
  id UUID PRIMARY KEY,
  title TEXT,
  embedding VECTOR<768> INDEX HNSW (M=32, ef_search=64)
);

SELECT o.id, i.title
FROM orders o
JOIN ANN items ON distance(o.query_vec, items.embedding) < 0.25
WHERE o.status = 'open';

Streaming Materialized Views

flowchart LR
    subgraph Sources
        CDC[Table CDC]
        KAFKA[Kafka Stream]
    end
    subgraph Processing
        DECODE[Decoder]
        WINDOW[Window Assignment]
        AGG[Incremental Aggregation]
    end
    subgraph Output
        STATE[State Store]
        MV[Materialized View]
    end
    CDC --> DECODE
    KAFKA --> DECODE
    DECODE --> WINDOW
    WINDOW --> AGG
    AGG --> STATE
    STATE --> MV

Example

CREATE MATERIALIZED VIEW revenue_daily
WITH (refresh='continuous', watermark = INTERVAL '1 minute')
AS
SELECT DATE_TRUNC('day', ts) d, SUM(amount) amt
FROM STREAM OF payments
GROUP BY d;

CALL mv.backfill('revenue_daily', source => 'payments_archive', from => '2025-01-01');

Storage, Transactions & Replication

LatticeDB uses a Unified Log-Structured Storage (ULS):

flowchart LR
    subgraph "Storage Engine"
        WAL[Write-Ahead Log]
        MEM[MemTable]
        L0[L0 SSTables]
        L1[L1 SSTables]
        L2[L2 SSTables]
    end
    subgraph "Indexes"
        BT[B+ Tree]
        VEC[Vector HNSW]
        BLOOM[Bloom Filter]
    end
    WAL --> MEM
    MEM --> L0
    L0 --> L1
    L1 --> L2
    L0 --> BT
    L0 --> VEC
    L0 --> BLOOM

Transactions & Consistency

sequenceDiagram
    participant C as Client
    participant P as Parser
    participant O as Optimizer
    participant E as Executor
    participant M as MVCC
    participant S as Storage
    participant A as Audit

    C->>P: SQL Query
    P->>O: AST + Policies
    O->>E: Physical Plan
    E->>M: Begin TX (CSN)
    M->>S: Read/Write at CSN
    S->>S: Apply CRDT Merge
    S-->>M: Result Set
    M-->>E: Versioned Data
    E->>A: Log Access
    E-->>C: COMMIT (txid)

SQL: LatticeSQL Extensions

[!NOTE] LatticeSQL is a strict superset of a familiar ANSI subsetβ€”with new temporal, merge, vector, DP, and streaming constructs.

Operations & Observability

flowchart TD
  IN[Incoming Queries] --> CLASS[Classifier]
  CLASS -->|OLTP| RG1[Low-Latency]
  CLASS -->|Analytics| RG2[Throughput]
  CLASS -->|Vector| RG3[Cache-Heavy]
  CLASS -->|Streaming| RG4[Deadline]
  RG1 --> ADM[Admission Controller]
  RG2 --> ADM
  RG3 --> ADM
  RG4 --> ADM
  ADM --> RUN[Executors]

Implementation Status

Core Components

Test Coverage

Our comprehensive test suite includes:

Run tests with:

cd tests
./run_all.sh

Benchmarks

Preliminary benchmarks show competitive performance on OLTP workloads compared to PostgreSQL and MySQL, with room for optimization in OLAP and vector search scenarios.

Visit the benchmarks file for details.

Run the native suite from the repository root:

cmake -S . -B build -DCMAKE_BUILD_TYPE=Release   # configure (skip if build/ already exists)
cmake --build build --target latticedb_bench --config Release
./build/latticedb_bench

Add -v to show per-iteration progress and --vector to include the optional vector-search benchmarks. Each run prints a summary table in the terminal and writes a benchmark_results.csv artifact in the project root.

Deployment

Wanna run LatticeDB in production? No problem! LatticeDB provides production-ready deployment configurations for major cloud providers and HashiCorp stack, enabling you to deploy your database with enterprise-grade reliability, security, and scalability.

Built-in Monitoring & Observability

All LatticeDB deployments include integrated Prometheus and Grafana monitoring out of the box:

⚑ Prometheus Metrics Collection

πŸ“ˆ Grafana Dashboards

🚨 Intelligent Alerting

# Access monitoring dashboards
# AWS: kubectl port-forward svc/grafana 3000:3000
# Azure: az containerapp browse --name grafana
# GCP: gcloud run services proxy grafana --port=3000
# HashiCorp: consul connect proxy -service grafana -upstream grafana:3000

Ready-to-use monitoring for production workloads with zero configuration required! 🎯

[!TIP] See MONITORING.md for detailed setup, customization, and alerting instructions.

Supported Platforms

Platform Service Features Best For
☁️ AWS ECS Fargate + ALB Auto-scaling, EFS storage, CloudWatch Enterprise workloads
🌐 Azure Container Apps Serverless, Auto-scaling, Azure Files Modern cloud-native apps
πŸš€ GCP Cloud Run + Cloud SQL Serverless, Global load balancer Global applications
πŸ—οΈ HashiCorp Nomad + Consul + Vault Service mesh, Secret management On-premises/hybrid

Quick Deploy

Choose your preferred platform and deploy with a single command:

# AWS - Deploy to ECS Fargate with auto-scaling
cd aws && ./deploy.sh

# Azure - Deploy to Container Apps
cd azure && ./deploy.sh

# GCP - Deploy to Cloud Run (serverless)
export GCP_PROJECT=your-project-id
cd gcp && ./deploy.sh

# HashiCorp Stack - Deploy to Nomad with service mesh
cd hashicorp && ./deploy.sh

What You Get

Each deployment provides:

Production Features

Example: Deploy to AWS

cd aws

# Customize your deployment
cp terraform.tfvars.example terraform.tfvars
# Edit terraform.tfvars with your AWS region, domain, etc.

# Deploy with monitoring and auto-scaling
./deploy.sh

# Your LatticeDB is now running at:
# https://your-domain.com (or load balancer DNS)

CI/CD Integration

Automated deployments with:

[!TIP] For complete deployment instructions, troubleshooting, and advanced configurations, see DEPLOYMENT.md.

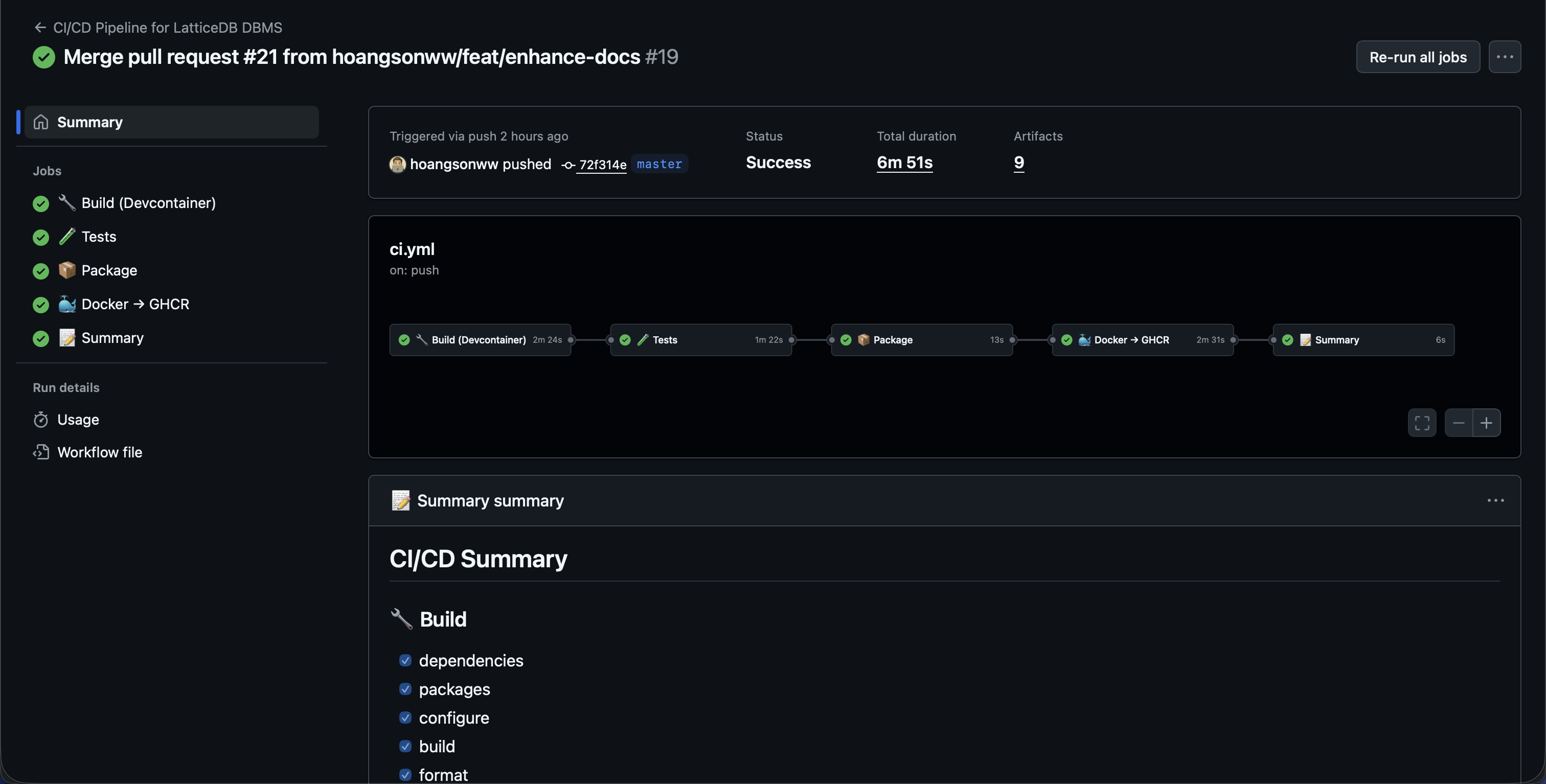

GitHub Actions

In addition to local builds & Travis/Jenkins, we also use GitHub Actions for CI/CD:

GitHub Actions Screenshot

The workflow automatically builds and tests the code on every push and pull request, ensuring code quality and stability.

Contributing

We ❀️ contributions! Ways to help:

[!NOTE] Please run clang-format with cmake --build build-container --target format before submitting PRs! Replace build-container with your build directory if different.

License

Unless stated otherwise in the repository, LatticeDB is released under the MIT License. See LICENSE for details.

Appendix: Glossary

Bonus: ER Model for Governance & Provenance

erDiagram
    TABLE ||--o{ ROW_VERSION : has
    POLICY ||--o{ POLICY_BINDING : applies_to
    ROW_VERSION }o--|| LINEAGE_EVENT : derived_from
    USER ||--o{ QUERY_SESSION : initiates
    QUERY_SESSION ||--o{ AUDIT_LOG : writes
    TABLE ||--o{ INDEX : has
    TABLE ||--o{ MATERIALIZED_VIEW : source

    TABLE {
        uuid table_id PK
        string name
        json schema_versions
        json merge_policy
        string crdt_type
        interval retention_period
    }
    ROW_VERSION {
        uuid row_id
        uuid table_id FK
        bigint csn_min
        bigint csn_max
        timestamptz valid_from
        timestamptz valid_to
        jsonB data
        jsonB provenance
        vector_clock merge_clock
    }
    POLICY {
        uuid policy_id PK
        string name
        string type "RLS|CLS|DP|MASK"
        json spec
        float epsilon_budget
    }
    INDEX {
        uuid index_id PK
        uuid table_id FK
        string type "BTREE|HNSW|BITMAP|BLOOM"
        json config
    }
    MATERIALIZED_VIEW {
        uuid view_id PK
        string name
        string refresh_type
        interval refresh_interval
    }

Why LatticeDB vs. β€œBig Three”

[!IMPORTANT] LatticeDB natively combines CRDT mergeability, bitemporal & lineage, policy-as-data with differential privacy, streaming MVs, vector search, and WASM extensibility into the core engineβ€”so you can build offline-tolerant, audited, privacy-preserving, real-time apps without stitching together sidecars, plugins, and external services.

Thank you for exploring LatticeDB! We’re excited about the future of databases and would love to hear your feedback and contributions.

This site is open source. Improve this page.
