What is AegisVision?

A platform-shaped answer to every hard lesson learned from operating large computer-vision platforms — built once, on purpose, with the scar tissue baked in.

AegisVision is what you get when you take the hardest lessons learned from operating large CV platforms (Matroid, Scale, Roboflow, ClearML, Sensible) — and rebuild from first principles around the constraints that actually dominate at scale.

The five non-negotiables

🚫

Frames never go on the bus

The bus carries claim-check URNs; bytes live in object storage. ADR-0008.

⛔

Per-frame work never touches the control plane

The data plane is stateless beyond the operator buffer. Temporal never sees a frame. ADR-0001.

🎮

GPUs are MIG-partitioned by default

Hardware isolation bounds blast radius. No soft-share fallback. ADR-0003.

🛑

Agents do not auto-execute consequential actions

Tier-3 tools refuse in code without a resolved gate. ADR-0014·0017.

📚

Platform-fact answers must cite

Knowledge-service returns cited snippets. No hallucinated stream-IDs. ADR-0020.

📦

Air-gap is day-one

Signed bundle is a first-class CI artifact. Never a retrofit. ADR-0027.

Status today

Phases 0–6 complete. The code is end-to-end green; operational validation (real SOC 2 audit, real 10k-stream soak, real production cluster) is what remains.

Phase	Theme	Status
0	Foundations: proto contracts, `pkg/platform`, walking-skeleton spine	complete
1	Glass-to-event walking skeleton (5 services + NATS)	complete · p95 ≈ 2.7 ms local
2	GPU hot path: Triton + MIG + inference-router + canary plumbing	complete
3	Multi-tenant + edge + storage tier (Patroni / ClickHouse / Vault)	complete
4	Intelligence tier: LLM gateway + agent + RAG + bounded autonomy	complete
5	Adaptive autonomy: canary + shadow + drift + SLO + prefetch	complete
6	GA hardening: compliance evidence + air-gap + chaos + DR drills + release	complete
7	Production console: Next.js 14 + Tailwind UI exposing every public endpoint (33 routes)	complete

High-level architecture

Two planes — separated along the frequency axis, not the domain axis. Per-frame work runs in the data plane; per-event work runs in the control plane.

flowchart LR subgraph Edge["Edge / on-prem"] CAM[Cameras / RTSP / Files] end subgraph Stream["Stream tier"] SM[stream-manager] DR[dataplane-runner] end subgraph GPU["GPU tier"] IR[inference-router] TRT[Triton + TRT-LLM] GS[gpu-scheduler] end subgraph Control["Control plane"] AG[api-gateway] PS[pipeline-service] MR[model-registry] TS[tenant-service] end subgraph Events["Event tier"] ES[event-service] RH[realtime-hub] NS[notification-service] end subgraph Store["Storage"] CH[(ClickHouse)] PG[(Postgres)] OBJ[(Object store)] end subgraph Brain["Intelligence tier"] LG[llm-gateway] AS[agent-service] PG2[policy-gate-service] KS[knowledge-service] end CAM --> SM SM --> DR DR --> IR IR --> TRT DR -- detections --> ES ES --> CH ES --> RH RH --> NS AG --> PS AG --> ES AG --> AS AS --> LG AS --> KS AS --> PG2 IR --> GS PS --> MR

Glass-to-event flow

The hot path. Every pixel that becomes a tenant-visible event takes this route.

sequenceDiagram autonumber participant CAM as Camera participant DR as dataplane-runner participant CC as claim-check participant IR as inference-router participant TRT as Triton + MIG participant NATS as NATS participant ES as event-service participant CH as ClickHouse participant AG as api-gateway actor U as User CAM->>DR: RTSP frame DR->>CC: PUT frame_urn DR->>DR: sampler DR->>IR: Infer(frame_urn, model) IR->>TRT: detect TRT-->>IR: detections IR->>NATS: inference.completed.v1 IR-->>DR: detections DR->>DR: tracker, rule alt rule trips DR->>NATS: events.v1 NATS->>ES: deliver ES->>CH: insert ES->>AG: SSE push AG->>U: SSE event end

Inference fan-out

Every Infer call emits up to three bus events. The 5-test integration smoke asserts every subject has both a producer and a consumer in CI.

flowchart LR IR[inference-router] -->|inference.completed.v1| NATS NATS --> MET[metering-service] NATS --> DD[drift-detection-service] NATS --> CA[cost-accounting] NATS --> AL[active-learning-service] IR -->|inference.baseline.v1| NATS NATS --> SI[shadow-inference-service] IR -->|inference.outcome.v1| NATS NATS --> CC[canary-controller]

Storage architecture

Three tiers, each chosen for the shape of the data — not "one DB for everything."

flowchart LR subgraph hot["hot path"] EVT[events.v1] -->|consume| ES[event-service] ES --> CH[(ClickHouse
3×2 replicated)] ES --> RING[in-mem ring] end subgraph cold["cold path"] PG[(Postgres
Patroni HA)] REDIS[(Redis
Sentinel HA)] end PS[pipeline-service] --> PG MR[model-registry] --> PG TS[tenant-service] --> PG AU[audit-service] --> PG NLQ[nlq-service] -.->|read| CH OBJ[(Object store
S3 / MinIO / Ceph)] CC[claim-check] --> OBJ MS[media-service] --> OBJ

The 35 services

Each in its own Go module, each a single bounded context, each communicating over typed protobuf contracts. No service shares state in memory with another.

Control plane Temporal-friendly

api-gateway

Public REST. JWT verify, OPA AuthZ, RFC 9457, idempotency, cursor pagination, SSE proxy, console.

pipeline-service

Pipeline DAGs + revisions. The canonical CRUD-with-revisions reference.

stream-manager

Stream lifecycle. Dispatches operator.control to dataplane-runner shards.

model-registry

Versioned model artifacts + reference distribution + gated promotion.

dataset-service

Datasets + dataset versions + lineage.

annotation-service

Labels + label-policy revisions (immutable).

training-orchestrator

Wraps Kubeflow / Ray / Argo Workflows training jobs.

media-service

Recordings + clips + retention. Crypto-shredded per tenant key.

tenant-service

Tenants + projects + members + RBAC.

auth-proxy

JWT verify against JWKS, tenant injection. No HMAC.

audit-service

Append-only, hash-chained audit log. Fail-closed.

Data plane per-frame, stateless

dataplane-runner

Operator DAG: ingest → sampler → detect → tracker → rule → emit.

inference-router

Routes to Triton; publishes inference.completed/baseline/outcome.

gpu-scheduler

MIG-default reservation ledger. No soft-share.

rule-engine

dwell, count, line-cross, zone-enter — composable.

event-service

Consumes events.v1; ClickHouse + SSE.

realtime-hub

WebSocket fan-out for console + integrations.

notification-service

Webhooks, email, Slack — replay-safe idempotent.

edge-gateway

k3s-friendly outbox sync to core.

Intelligence tier Phase 4

llm-gateway

One OpenAI-compatible endpoint. Sanitizer + PII redactor + refusal threshold.

agent-service

Bounded-autonomy runtime. Tier-3 routes via policy-gate. Auto-resume on gate.resolved.

policy-gate-service

Human-in-the-loop approval. Audit on every decision.

knowledge-service

RAG corpus over docs + ADRs + runbooks. Citation-mandatory.

active-learning-service

Uncertainty + diversity sampling. Never random.

nlq-service

Natural-language → structured query.

Adaptive autonomy Phase 5

canary-controller

Wilson lower-bound + min-sample floor proportion test.

shadow-inference-service

Same-URN candidate-vs-baseline. Tenant never sees candidate.

drift-detection-service

JS / KL / TVD divergence vs reference.

slo-watchdog

Multi-window burn-rate. SRE workbook.

prefetch-service

7×24 EMA grid; warm-ups ahead of demand.

autonomy-orchestrator

Cron + signal-driven agent sessions. No second runtime.

GA hardening Phase 6

compliance-evidence-service

Composes per-control evidence; owns no data.

semantic-search

Cross-tenant semantic search over events + clips.

cost-accounting

Per-tenant GPU-second + token + storage cost.

metering-service

Billable-event aggregation from inference.completed.v1.

Production console Phase 7

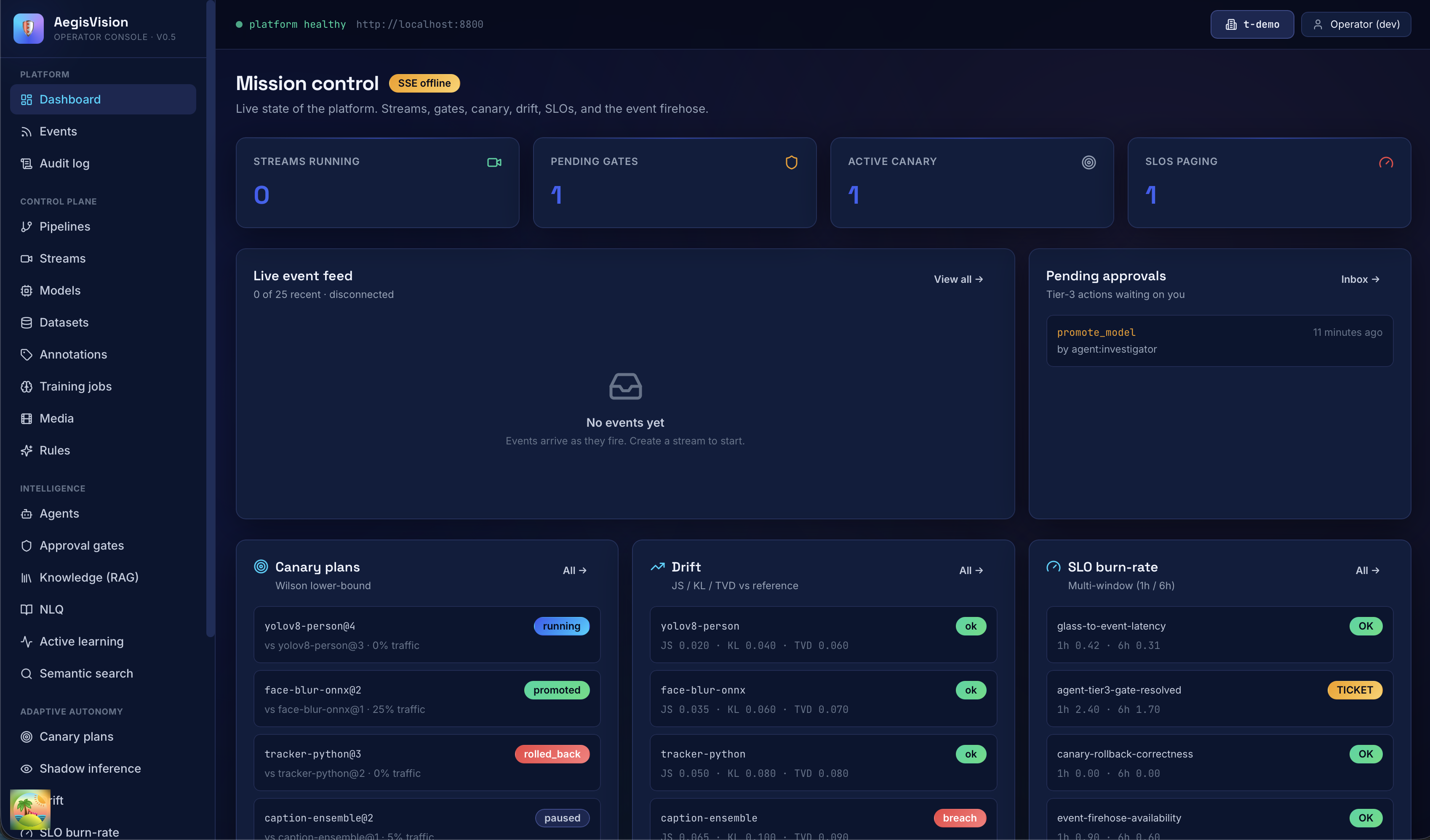

console

Next.js 14 + Tailwind. 33 routes covering every public REST endpoint: dashboard with live SSE, streams + pipelines + models, agents with citations + tier-3 gate banner, gate inbox, canary decision board, drift heatmap, SLO burn-rate, prefetch grid, knowledge RAG, audit log + chain-verify, tenants, cost, compliance bundles, and more. Conformance-clean Helm chart.

Bounded-autonomy agents

The agent has a fixed toolbox. Each tool carries a risk tier. Tier-3 tools refuse to run in code without a resolved gate. You cannot prompt your way past it.

Tier 0 · auto, read-only ✓

Auto-execute. Read-only. Examples:

query_knowledge read_event_stream describe_pipeline list_models

Tier 1 · advisory ✓

Auto-execute. Returns recommendation only. Examples:

summarise compare_distributions predict_dwell

Tier 2 · propose ⚠

Auto-execute. Returns a proposal, no side effect. Examples:

propose_retrain propose_canary_plan propose_retention_change

Tier 3 · gated 🛑

Refused in code without resolved gate. Routes via policy-gate-service. Examples:

promote_model override_retention force_failover delete_dataset

Tier-3 gate round-trip

sequenceDiagram autonumber actor U as User participant AS as agent-service participant LG as llm-gateway participant PG as policy-gate-service actor A as Approver participant NATS as NATS U->>AS: "promote my-model-v2" AS->>LG: choose tool LG-->>AS: tool=promote_model (tier 3) AS->>PG: RequestGate(promote_model, args) PG-->>AS: gate_id=g_xyz AS-->>U: pending approval (gate_id) PG->>A: notify A->>PG: approve(g_xyz) PG->>NATS: gate.resolved.g_xyz NATS->>AS: auto-deliver AS->>AS: a.Resume(ctx, g_xyz, toolResult) AS-->>U: "Promoted my-model-v2."

The refusal is in pkg/agent/agent.go: if tool.Tier == Tier3 && req.GateID == "" { return ErrTier3NeedsGate }. It cannot be prompted away. Even autonomy-orchestrator goes through the same agent-service runtime (ADR-0022) — every constraint binds.

Adaptive autonomy

Five self-improving loops. Each is statistically rigorous; promotion still routes through a human gate by design.

📈

Canary

Wilson lower-bound proportion test + minimum sample floor. Automatic rollback; gated promotion. ADR-0023.

👻

Shadow inference

Same-URN candidate-vs-baseline. Candidate never reaches the tenant; only the comparison metric. ADR-0024.

📊

Drift

Sliding-window JS / KL / TVD divergence vs reference distribution. ADR-0025.

🚨

SLO burn-rate

Multi-window (1h fast, 6h slow). Page only if both windows breach. ADR-0025.

🔥

Predictive prefetch

7×24 hour-of-week EMA grid; warm-ups dispatched at horizon ahead of demand. ADR-0026.

🤖

Continuous autonomy

Cron + signal-driven agent sessions. No second runtime — opens regular agent-service sessions. ADR-0022.

The canary loop

sequenceDiagram autonumber participant IR as inference-router participant CC as canary-controller participant MR as model-registry participant PG as policy-gate-service loop per outcome IR->>CC: inference.outcome.v1 CC->>CC: update Wilson lower bound end alt rollback condition CC->>MR: automatic rollback else promote recommendation CC->>PG: RequestGate(promote_model) PG-->>CC: approved CC->>MR: promote candidate else hold CC->>CC: keep accumulating end

Security & supply chain

Defense in depth, refuse unsafe defaults, fail closed. Every control here has a corresponding SOC 2 evidence record + pen-test scope entry.

🔐

mTLS STRICT everywhere

Istio Ambient. Every pod-to-pod call is mTLS. No plaintext. Per-service AuthorizationPolicy ALLOW list with SPIFFE IDs.

📜

OPA AuthZ

Per-service Rego. Default-deny. Per-tenant model allow-lists; per-project member roles; per-resource ownership.

🆔

SPIRE workload identity

Every pod gets a SPIFFE ID. Mesh authorization keyed on these IDs.

🗝️

Per-tenant Vault transit

Destroying a tenant's transit key renders all encrypted bytes (including backups) unreadable. Crypto-shredding. ADR-0014.

📦

Cosign keyless + SLSA v1 + SBOM

Every image keylessly signed via OIDC. Kyverno admission verifies signatures against the build workflow. Syft SPDX SBOM attached.

🧱

NetworkPolicy default-deny

Even if the mesh is compromised, the pod network refuses connections.

📝

Append-only, hash-chained audit

No UPDATE, no DELETE. Fail-closed: if audit can't append, the upstream operation fails.

🧬

Prompt-injection defense in depth

Sanitiser + PII redactor + refusal threshold + per-tenant rate limit + tier-3 gate. ADR-0021.

Defense-in-depth example: "promote a model"

flowchart TB USER["Agent suggestion: promote_model"] --> CITE["Citation required
knowledge-service"] CITE --> TIER["Tier 3 → refused in code without gate"] TIER --> AUTHZ["OPA AuthZ check"] AUTHZ --> AUDIT1["Audit: gate requested"] AUDIT1 --> GATE["policy-gate-service
human approval"] GATE --> AUDIT2["Audit: gate resolved"] AUDIT2 --> WILSON["Wilson lower bound met"] WILSON --> MR["model-registry: promote"] MR --> AUDIT3["Audit: model promoted"] MR --> COSIGN["Cosign verify on artifact pull"]

Eight checkpoints. Any one of them can refuse.

Deploy paths

Local laptop → online Kubernetes → air-gapped DMZ → k3s edge. Same charts, same contracts, one bundle.

💻

A · Walking skeleton

5 services + embedded NATS, no external deps. ~5 min from clone to first real event.

☁️

B · Local dev (full stack)

Postgres + ClickHouse + NATS + MinIO via docker-compose; all 35 services local.

☸️

C · Online cluster

ArgoCD ApplicationSet reconciles 38 charts. ~5–10 min first sync.

📦

D · Air-gapped

Signed bundle (~6–8 GiB tar.zst). Cosign verify on target. ~30 min install on a 6-node cluster.

🛰️

E · Edge (k3s)

Reduced operator set + outbox sync to core. Jetson AGX Orin friendly.

📈

Capacity targets

10,000 streams / cluster · 1,000,000 detections/s · 1,000 concurrent agents · p95 glass→event < 300 ms.

Walking-skeleton in 5 commands

# Terminal 1 — event-service embeds NATS in dev mode.
AEGIS_EMBED_NATS=true task run:event-service
# Note the URL it logs. Export it for the rest:
export AEGIS_NATS_URL=nats://127.0.0.1:NNNNN

# Terminals 2–5
task run:pipeline-service
AEGIS_NATS_URL=$AEGIS_NATS_URL task run:stream-manager
AEGIS_NATS_URL=$AEGIS_NATS_URL task run:dataplane-runner
AEGIS_STREAM_MANAGER_ADDR=localhost:9092 \
AEGIS_EVENT_SERVICE_URL=http://localhost:8090 \
AEGIS_CONSOLE_DIR=$(pwd)/services/api-gateway/console \
  task run:api-gateway

# Subscribe to the SSE feed, then create a stream:
curl -N -H 'X-Tenant-Id: t-demo' \
  'http://localhost:8080/v1/events:stream?stream_id=stream-dock-1'

curl -X POST -H 'X-Tenant-Id: t-demo' -H 'Idempotency-Key: 1' \
  -H 'Content-Type: application/json' \
  -d '{"name":"dock-1","project_id":"p1","protocol":"file",
       "url":"file:///x","pipeline_id":"p-walking"}' \
  http://localhost:8080/v1/streams

Within ~5 s, an event with kind: KIND_DWELL arrives on the SSE feed. End-to-end. Real services.

30 Architecture Decision Records

The load-bearing decisions. Violating any of these is an ADR-tracked change, not a feature PR.

ADR	Decision
0001	Control plane / data plane are hard-separated. Temporal never sees a frame.
0002	ClickHouse holds the detection firehose. PostgreSQL holds metadata.
0003	MIG is the default GPU sharing mode for production inference.
0007	Protobuf-everywhere, Buf-managed. `/proto` has strictest CODEOWNERS.
0008	Frames and media never travel on Kafka or NATS. Claim-check only.
0014	Bounded autonomy. Agents auto-execute read/advisory + reversible ops; consequential = gate.
0016	Walking skeleton first — thin but complete on the real architecture.
0017	4-tier risk model encoded in tool schemas; refusal-in-code for tier-3.
0018	One LLM/VLM gateway. OpenAI-compatible. Backend-swappable.
0019	Active learning samples by uncertainty + diversity, never random.
0020	Platform-fact answers are retrieval-augmented; no hallucinated identifiers.
0021	Prompt-injection defense in depth — sanitizer + PII + threshold + rate limit + gate.
0022	Continuous autonomy uses regular agent-service sessions. No second runtime.
0023	Canary uses Wilson lower-bound + min-sample floor. Promotion gated; rollback automatic.
0024	Shadow inference compares candidate vs baseline on same frame URN.
0025	Drift = JS/KL/TVD vs reference. SLO = multi-window burn-rate.
0026	Predictive prefetch via 7×24 EMA grid.
0027	Air-gapped bundle as day-one CI artifact.
0028	Chaos engineering as production-readiness gate.
0029	compliance-evidence-service owns no data; composes evidence on demand.
0030	release-please + signed air-gap bundle promotion; single platform version.

Browse the docs

📘 README What AegisVision is, status, layout, quickstart.

🏛 ARCHITECTURE Canonical architecture deep dive. 700+ lines.

⚙️ SETUP_GUIDE Local → cluster → air-gapped → edge. Step-by-step.

📐 30 ADRs Every load-bearing architectural decision.

📋 Compliance SOC 2, EU AI Act, GDPR DPIA, pen-test scope.

📒 Runbooks Oncall, incident, DR, chaos game day, drift spike.

💡 Concepts Pipelines, streams, models, datasets, rules.

🔒 Security Threat model, defenses, prompt-injection.

🧠 Agents Bounded autonomy, tier model, citation.

🎯 Canary & Shadow Wilson math + same-URN evaluation.

📊 Drift & SLO JS/KL/TVD + multi-window burn-rate.

🌐 API Reference Every public REST endpoint.

What is AegisVision?

The five non-negotiables

Frames never go on the bus

Per-frame work never touches the control plane

GPUs are MIG-partitioned by default

Agents do not auto-execute consequential actions

Platform-fact answers must cite

Air-gap is day-one

Status today

High-level architecture

Glass-to-event flow

Inference fan-out

Storage architecture

The 35 services

Control plane Temporal-friendly

Data plane per-frame, stateless

Intelligence tier Phase 4

Adaptive autonomy Phase 5

GA hardening Phase 6

Production console Phase 7

Bounded-autonomy agents

Tier 0 · auto, read-only ✓

Tier 1 · advisory ✓

Tier 2 · propose ⚠

Tier 3 · gated 🛑

Tier-3 gate round-trip

Adaptive autonomy

Canary

Shadow inference

Drift

SLO burn-rate

Predictive prefetch

Continuous autonomy

The canary loop

Security & supply chain

mTLS STRICT everywhere

OPA AuthZ

SPIRE workload identity

Per-tenant Vault transit

Cosign keyless + SLSA v1 + SBOM

NetworkPolicy default-deny

Append-only, hash-chained audit

Prompt-injection defense in depth

Defense-in-depth example: "promote a model"

Deploy paths

A · Walking skeleton

B · Local dev (full stack)

C · Online cluster

D · Air-gapped

E · Edge (k3s)

Capacity targets

Walking-skeleton in 5 commands

30 Architecture Decision Records

Browse the docs

Built by one person.

Son Nguyen
