Overview

Multi-Agent Collaboration

Coordinate Claude, Codex, Gemini, Copilot, and local model backends with intelligent workflows.

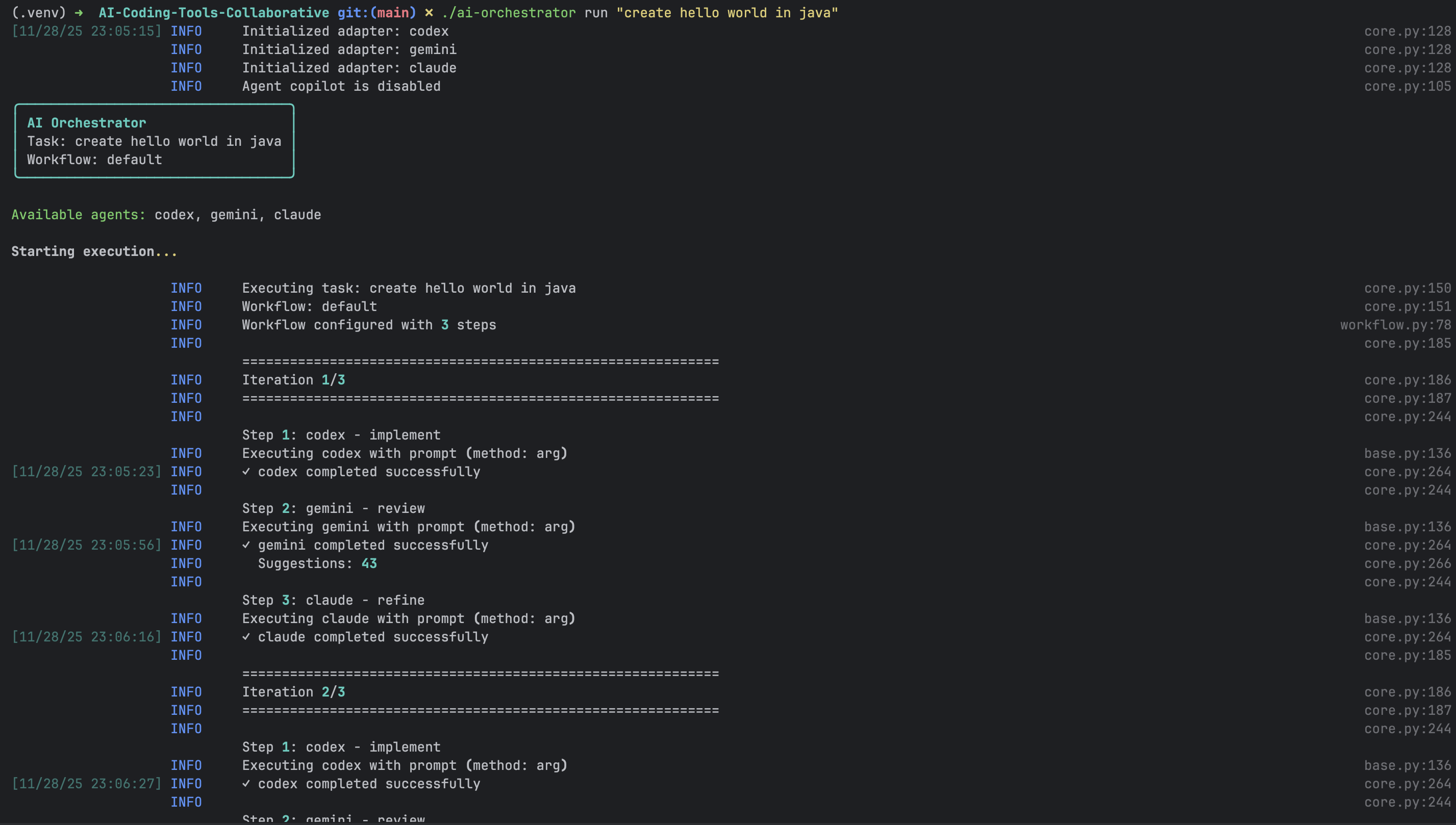

Interactive CLI & Web UI

Choose between a powerful command-line interface or modern web UI with real-time updates.

Configurable Workflows

Define custom collaboration patterns or use built-in workflows for different scenarios, including offline and hybrid execution.

Production Ready

Security, monitoring, rate limiting, retry logic, and comprehensive test coverage built-in.

Agentic Infrastructure

9 specialized agents, 24 skills, and 34+ MCP tools provide enterprise-grade support for any development task.

Project-Scoped Context Memory

Graph-based memory with hybrid search and project-scoped isolation lets agents learn from past tasks and avoid repeating mistakes.

Graphify

Turn any directory into a queryable knowledge graph. AST-based code analysis for 19 languages, REST API, interactive HTML visualization, and multi-format export (JSON, GraphML, DOT, Markdown, Obsidian vault).

Obsidian Vault Export

Export code graphs and context memory as Obsidian vaults. Pre-configured graph view with color-coded node types, [[wikilinks]], and YAML frontmatter - across all three graph systems.

Agentic Team Runtime

Multi-role team collaboration with free inter-agent communication, lead-gated responses, configurable turn limits, and live communication graphs.

The project is organized into five standalone systems - Orchestrator, Agentic Team, MCP Server, Context Dashboard, and Graphify - and is built to coordinate real coding workflows across Claude, Codex, Gemini, Copilot, and local backends. Orchestrator drives step-based execution and fallback, Agentic Team runs role-based collaboration, MCP Server exposes automation tools, Context Dashboard surfaces memory/telemetry, and Graphify builds AST-powered knowledge graphs across 19 programming languages.

Local model note: Local adapters are fully wired into routing/offline/fallback flows, but they currently return text outputs only and do not directly edit files. They are best for offline drafting, review, and continuity fallback.

How It Works

graph LR
    A[User Request] --> B[AI Orchestrator]
    B --> C{Offline Mode?}
    C -->|Yes| D[Route to Local Agent by type]
    C -->|No| E[Route to Cloud or Local Agent]
    D --> F[Execute Workflow Step]
    E --> F
    F --> G{Step Success?}
    G -->|Yes| H[Next Step]
    G -->|Recoverable failure| I[Fallback Agent]
    I --> H
    H --> J[Final Output + Files]

    style A fill:#3b82f6,stroke:#3b82f6,color:#fff
    style B fill:#2563eb,stroke:#2563eb,color:#fff
    style D fill:#10b981,stroke:#10b981,color:#fff
    style E fill:#60a5fa,stroke:#60a5fa,color:#fff
    style I fill:#60a5fa,stroke:#60a5fa,color:#fff
    style J fill:#10b981,stroke:#059669,color:#fff

6

AI Agent Adapters

52

Python Modules

386

Automated Tests

34+

MCP Tools

7

Workflows

5

Independent Systems

9

Specialized Agents

24

Reusable Skills

10

Node Types

12

Edge Types

Core Features

Multi-Agent Collaboration

Coordinate multiple AI assistants with specialized roles:

Codex: Initial implementation
Gemini: Code review & analysis
Claude: Refinement & documentation
Copilot: Alternative suggestions
Ollama/llama.cpp: Local offline execution

Offline + Local LLM Support

Run local-only workflows with --offline
Dynamic agent keys resolved by type
Supported local types: ollama, llamacpp, localai, text-generation-webui
Built-in cloud-to-local fallback routing
CLI local model lifecycle: status/list/pull/remove
Limitation: local adapters return text output only and do not directly edit files
Best use: offline drafting/review and cloud-to-local fallback; use CLI agents for direct file edits

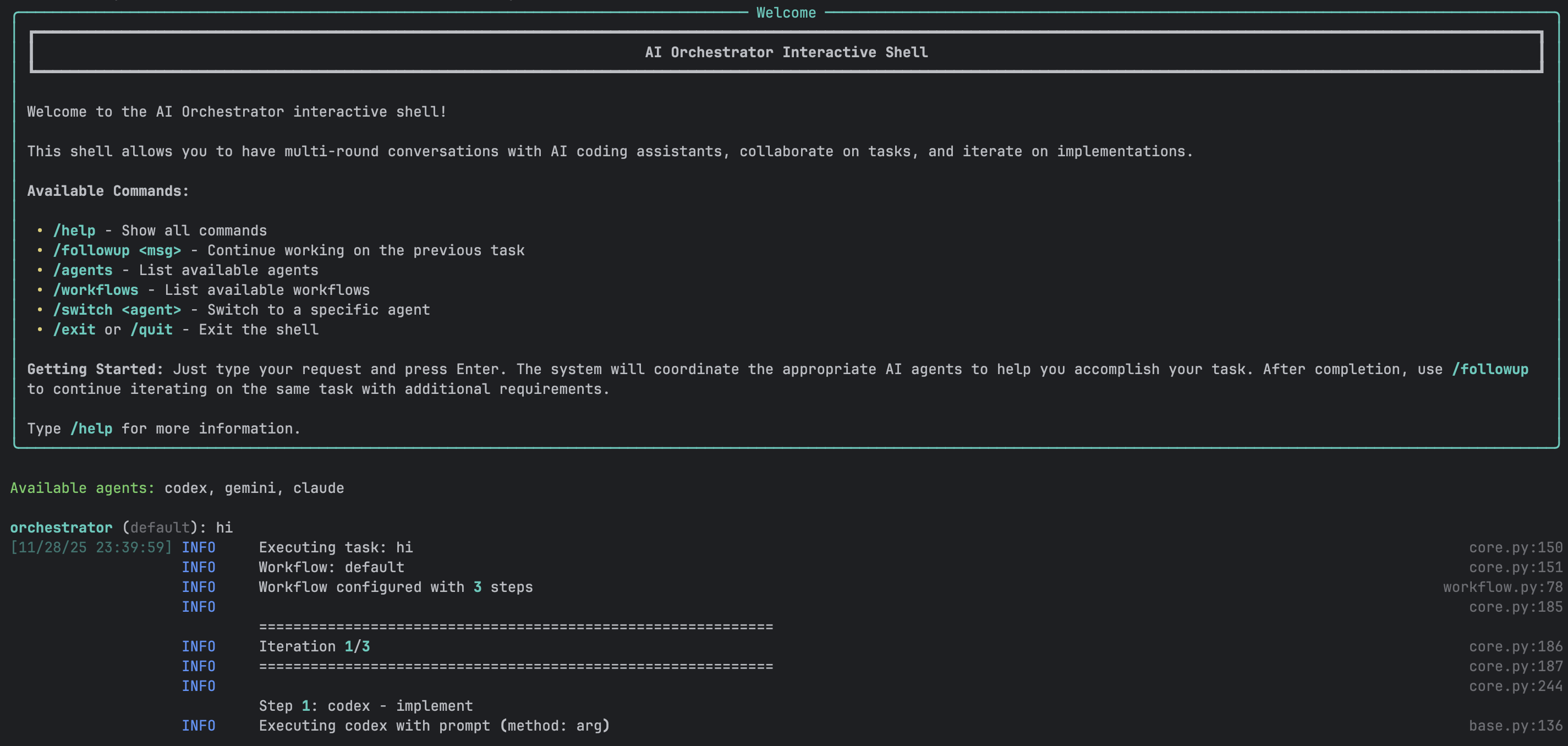

Interactive Shell

REPL-style conversation interface
Smart follow-up detection
Full readline support & history
Session save/restore
Colored output with Rich

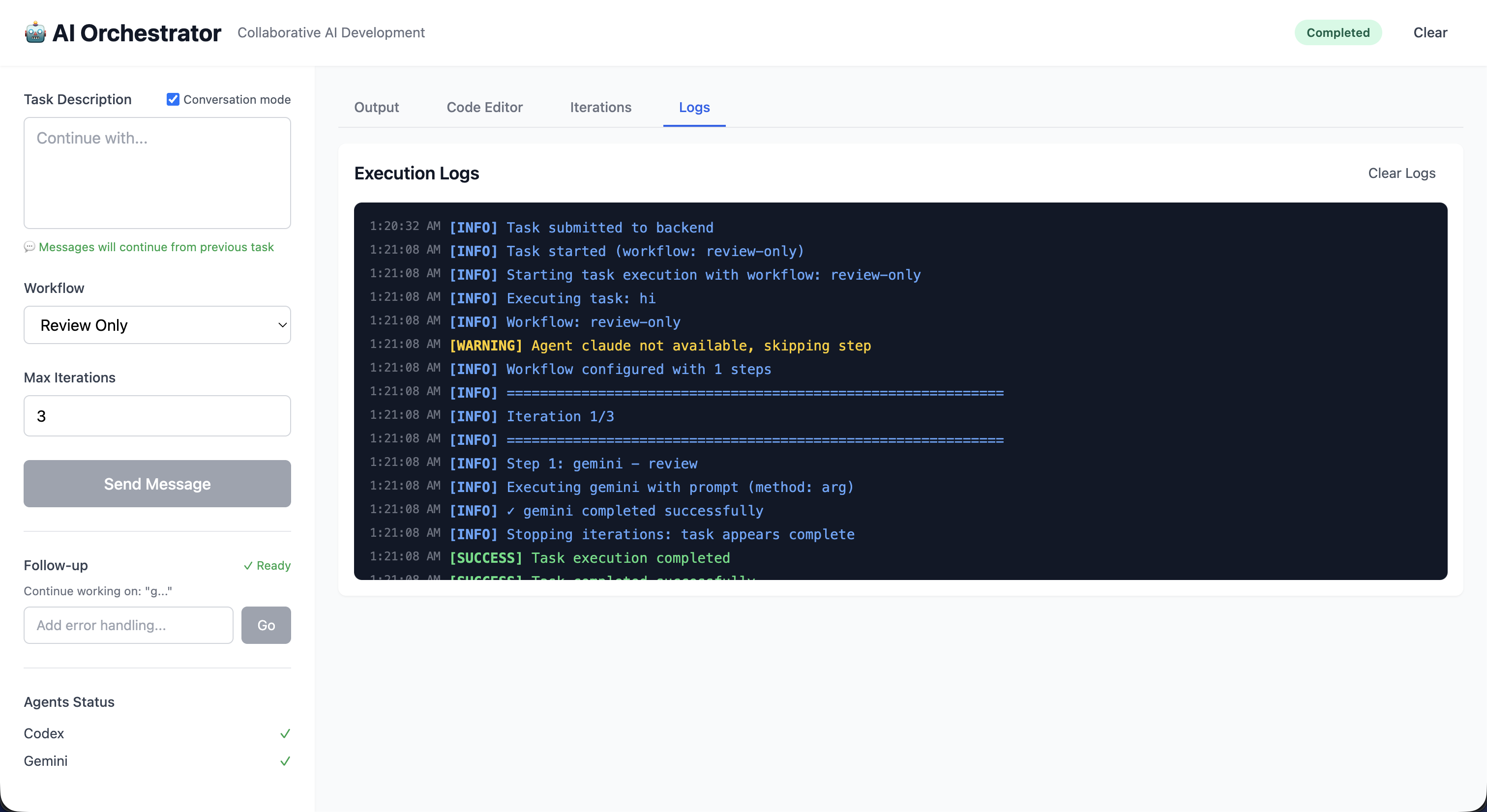

Modern Web UI

Vue 3 with Composition API
Real-time updates via Socket.IO
Monaco code editor (VS Code)
Pinia state management
File management & downloads
Conversation mode toggle

Monitoring, Metrics & Reports

Prometheus metrics integration
Structured logging (structlog)
Health & readiness checks
Auto-generated execution reports (JSON)
Interactive HTML dashboard with Chart.js
Agent performance & workflow analytics

Security Features

Input validation & sanitization
Rate limiting (token bucket)
Audit logging
Secret management
Security scanning (Bandit)

Performance

Async execution support
Multi-layer caching
Connection pooling
Retry logic with backoff
Circuit breaker pattern

Deployment Options

Docker & Docker Compose
Kubernetes manifests
Systemd service files
CI/CD with GitHub Actions
Multi-environment configs

Code Quality

Pylint 10.00/10 (zero warnings)
386+ tests (pytest)
15 pre-commit hooks passing
Black + isort + flake8 + MyPy
Type hints with Pydantic

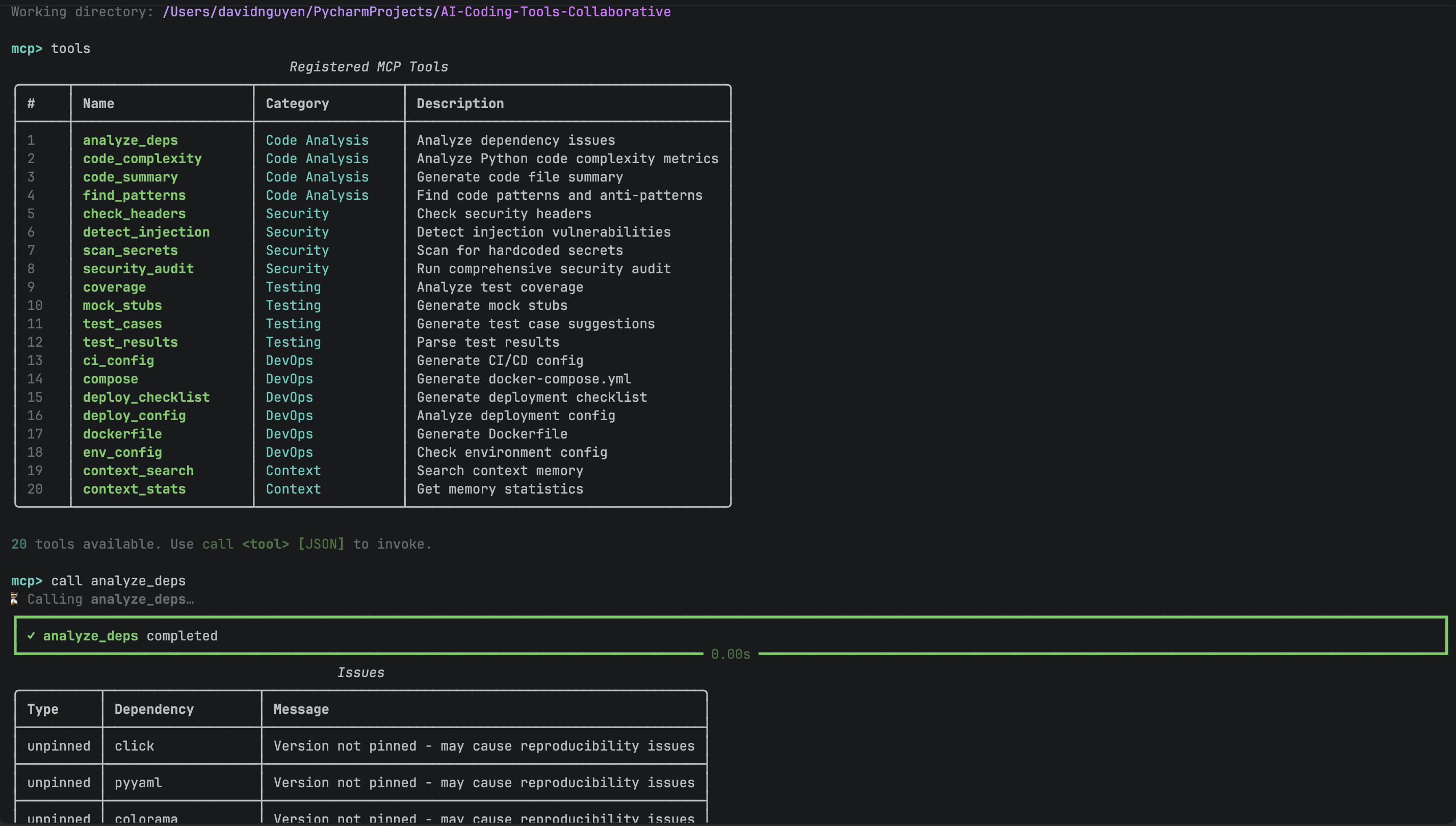

MCP Server (Model Context Protocol)

FastMCP 3.x - 34+ tools, 2 resources
Claude Desktop integration (stdio)
Remote access via HTTP transport
Both engines accessible from any MCP client
Python client wrappers included

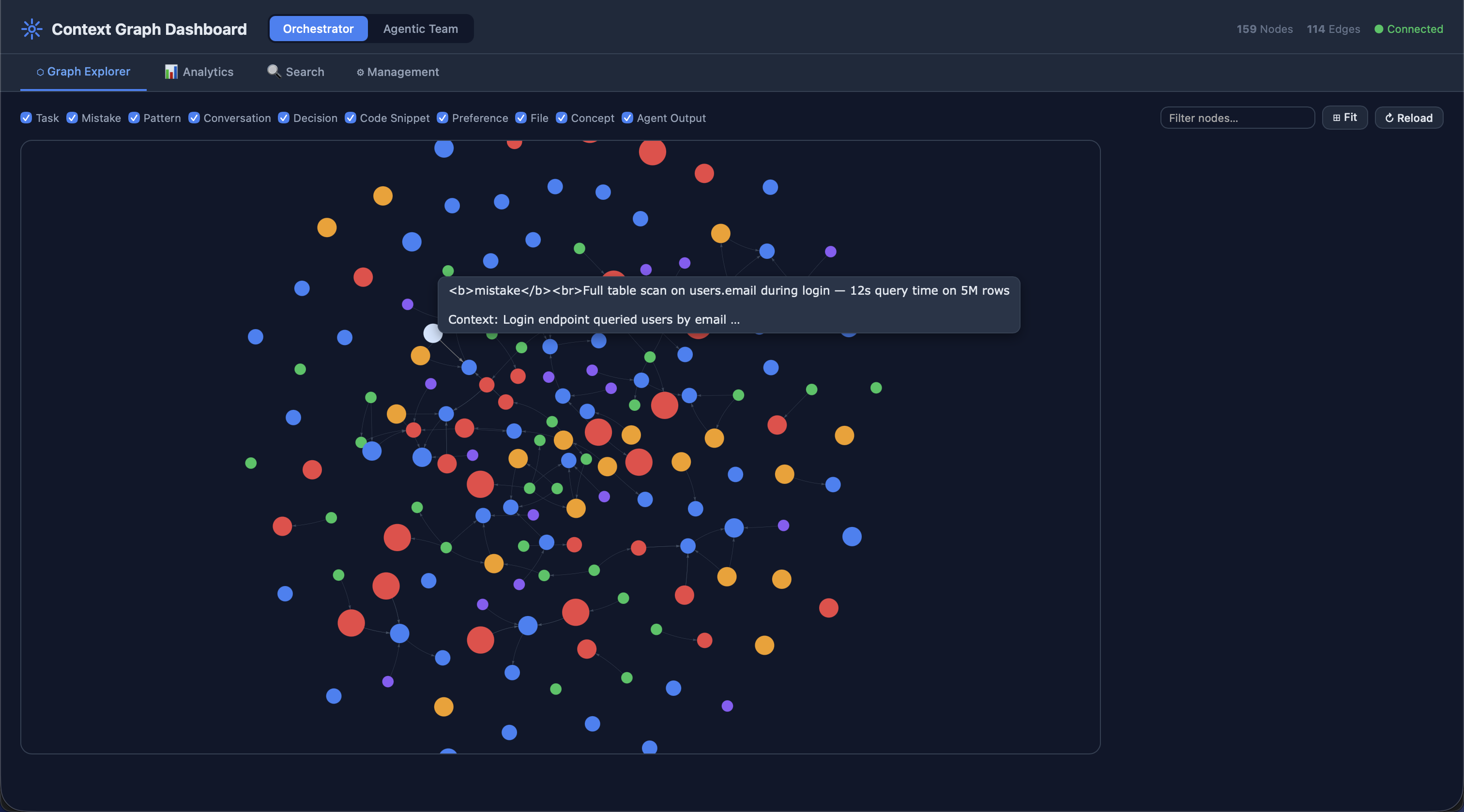

Graph Context Memory

SQLite + FTS5 graph database
10 node types, 12 edge types
Hybrid search (BM25 + semantic)
Sentence transformer embeddings
Auto-storage of tasks & mistakes
Obsidian vault export with graph view

Specialized Agents & Skills

9 domain-specific agents (Claude + Codex)
24 reusable skills across 6 categories
10 domain-specific rules per platform
Web, API, Security, DevOps, AI/ML, DB
Extensible YAML/TOML configuration

Graphify

AST analysis for 19 languages via tree-sitter grammars
SQLite + FTS5 graph store with WAL mode
REST API (34+ endpoints) with Flask
Interactive HTML visualization (vis.js)
Multi-format export: JSON, GraphML, DOT, Markdown, Obsidian
File watcher for live incremental rebuilds
God-node detection & hotspot analysis
Thread-safe, project-scoped, enterprise-grade

Obsidian Integration

Export all 3 graph systems as Obsidian vaults
[[Wikilinks]] between nodes - classes, tasks, decisions
YAML frontmatter with type, tags, importance, timestamps
Pre-configured .obsidian/graph.json color groups
_Index.md Map of Content with stats & category links
Dark theme & core plugins auto-enabled

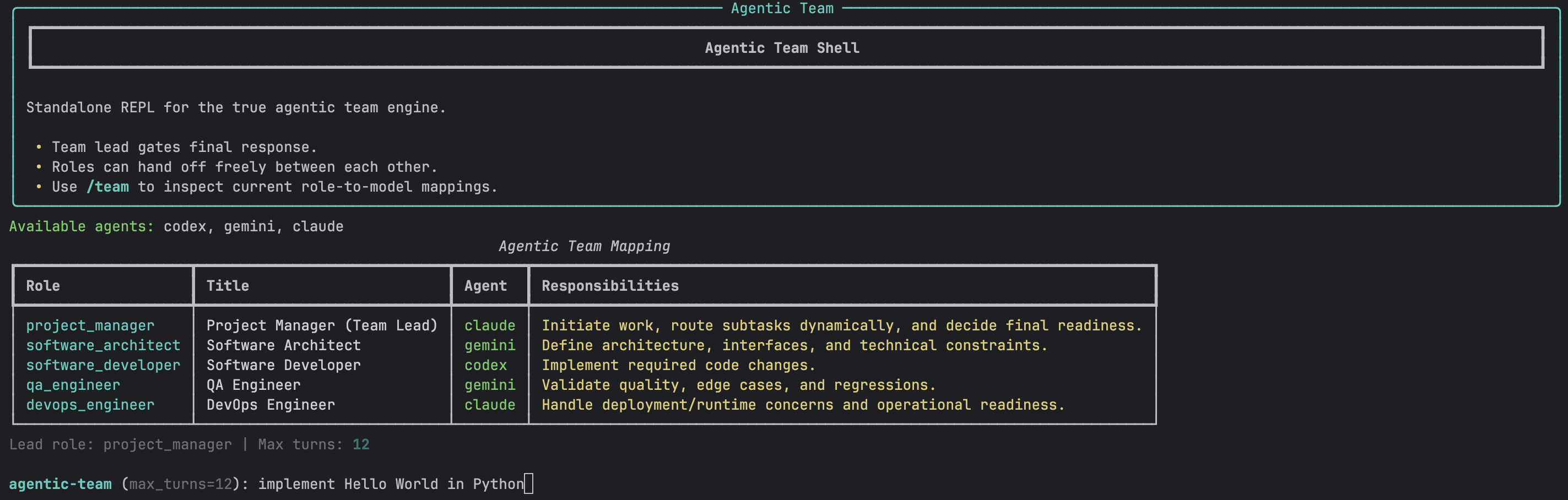

Agentic Team Runtime

5 specialist roles with free inter-role communication
Team Lead gatekeeping for final responses
Configurable turn limits & escalation safety
Live communication graph & timeline UI
Independent context memory & fallback routing
Dedicated REPL & web studio interface

Agentic Infrastructure

Beyond the core engines, we provide enterprise-grade infrastructure that empowers AI agents to accomplish any development task effectively. This includes specialized agents, reusable skills, MCP tools, and persistent context memory with project-scoped isolation.

Infrastructure Overview

graph TB
    subgraph "🧠 Agentic Infrastructure"
        direction TB

        subgraph AGENTS["Specialized Agents (9)"]
            WEB[Web Frontend]
            API[Backend API]
            SEC[Security]
            OPS[DevOps]
            ML[AI/ML]
            DB[Database]
        end

        subgraph SKILLS["Skills Library (22)"]
            DEV[Development]
            TEST[Testing]
            SECS[Security Skills]
            DEVOPS[DevOps Skills]
            AIML[AI/ML Skills]
            DOCS[Documentation]
        end

        subgraph TOOLS["MCP Tools (34+)"]
            CODE[Code Analysis]
            SCAN[Security Scan]
            TTOOLS[Testing]
            DTOOLS[DevOps]
            CTX[Context Memory]
        end

        subgraph CONTEXT["Graph Context System"]
            GRAPH[(SQLite + FTS5)]
            SEARCH[Hybrid Search]
            EMBED[Embeddings]
        end
    end

    AGENTS --> SKILLS
    SKILLS --> TOOLS
    TOOLS --> CONTEXT

Specialized Agents (9)

Domain experts for every development area:

web-frontend: React, Vue, Angular, CSS
backend-api: REST, GraphQL, Microservices
security-specialist: OWASP, Secure Coding
devops-infrastructure: Docker, K8s, CI/CD
ai-ml-engineer: ML Pipelines, RAG, LLMs
database-architect: Schema, Optimization

Skills Library (22)

Reusable task templates across 6 categories:

Development: react-components, rest-api-design
Testing: unit-testing, integration-testing, tdd
Security: input-validation, authentication
DevOps: docker, ci-cd, kubernetes
AI/ML: embeddings, llm-integration, rag
Docs: api-docs, architecture-docs

MCP Tools (34+)

Tools exposed via Model Context Protocol:

Code Analysis: complexity, patterns, deps
Security: secrets scan, injection detection
Testing: test cases, stubs, coverage
DevOps: dockerfile, compose, CI config
Context: store, search, log mistakes

Graph Context System

Persistent memory with intelligent retrieval:

10 Node Types: Task, Mistake, Pattern, etc.
12 Edge Types: RELATED_TO, CAUSED_BY, etc.
Hybrid Search: BM25 + Semantic embeddings
Auto-storage: Tasks stored automatically
Learning: Agents learn from mistakes
Project Scoping: Project-scoped context graphs with multi-project isolation, automatic codebase scanning, and portable configuration via PROJECT_PATH
Obsidian Export: Export context graphs as Obsidian vaults with [[wikilinks]], color-coded graph view, and YAML frontmatter

Domain Rules (10)

Enforce best practices across domains:

Security: OWASP, input validation
Database: Indexing, query optimization
API Design: REST/GraphQL standards
Performance: Caching, async patterns
AI/ML: Pipeline best practices

Extensibility

Easy to extend with new capabilities:

Add agents: YAML/TOML definitions
Add skills: Markdown templates
Add tools: Python MCP functions
Add rules: Domain-specific guidelines
Plug & play: No code changes needed

Graph Context System

graph TB
    subgraph "Context System"
        subgraph "Storage"
            SQLITE[(SQLite DB)]
            FTS5[FTS5 Index]
            VEC[(Vectors)]
        end

        subgraph "Nodes"
            CONV[Conversations]
            TASK[Tasks]
            MISTAKE[Mistakes]
            PATTERN[Patterns]
        end

        subgraph "Search"
            BM25[BM25]
            EMBED[Embeddings]
            RRF[RRF Fusion]
        end

        subgraph "Export"
            JSONX[JSON]
            GMLX[GraphML]
            OBSX["Obsidian Vault
[[wikilinks]] + graph.json"]
        end
    end

    CONV & TASK & MISTAKE --> SQLITE
    SQLITE --> FTS5
    EMBED --> VEC
    BM25 & EMBED --> RRF
    SQLITE --> JSONX & GMLX & OBSX

Full Agentic Infra Documentation

System Architecture

The AI Orchestrator follows a modular, layered architecture with clear separation of concerns. Five independent systems - Orchestrator, Agentic Team, MCP Server, Context Dashboard, and Graphify - each have their own CLI, config, and adapters with zero cross-imports.

Runtime controls include offline detection, fallback management, local model endpoint probing, and Graphify codebase knowledge graphs for deep project understanding.

flowchart TB
    subgraph "User
Interfaces"
        CLI[CLI Shell
Click + Rich]
        WebUI[Web UI
Vue 3 + Socket.IO]
        MCP[MCP Server
FastMCP 3.x]
    end

    subgraph "Core
Orchestrator"
        Engine[Orchestration
Engine]
        Workflow[Workflow
Manager]
        Config[Config
Manager]
        Session[Session
Manager]
        Router[Type-based
Adapter Resolver]
    end

    subgraph "Cross-Cutting
Concerns"
        Metrics[Prometheus
Metrics]
        Cache[Response
Cache]
        Retry[Retry
Logic]
        Security[Security
Layer]
    end

    subgraph "AI
Adapters"
        Claude[Claude
Adapter]
        Codex[Codex
Adapter]
        Gemini[Gemini
Adapter]
        Copilot[Copilot
Adapter]
        Ollama[Ollama
Adapter]
        LlamaCpp[LlamaCpp
Adapter]
    end

    subgraph "Runtime
Controls"
        Offline[Offline
Detector]
        Fallback[Fallback
Manager]
        ModelStatus[Local Model
Status Probe]
    end

    subgraph "External AI
Tools"
        ClaudeCLI[Claude Code
CLI]
        CodexCLI[OpenAI Codex
CLI]
        GeminiCLI[Google Gemini
CLI]
        CopilotCLI[GitHub Copilot
CLI]
        OllamaAPI[Ollama API
/api/generate]
        OpenAICompat[Local OpenAI-Compatible API
/v1/completions]
    end

    CLI --> Engine
    WebUI --> Engine
    MCP --> Engine
    Engine --> Workflow
    Engine --> Config
    Engine --> Session
    Engine --> Router
    Engine --> Offline
    Engine --> Fallback
    WebUI --> ModelStatus
    ModelStatus --> OllamaAPI
    ModelStatus --> OpenAICompat
    Workflow --> Metrics
    Workflow --> Cache
    Workflow --> Retry
    Workflow --> Security
    Workflow --> Claude
    Workflow --> Codex
    Workflow --> Gemini
    Workflow --> Copilot
    Workflow --> Ollama
    Workflow --> LlamaCpp
    Claude --> ClaudeCLI
    Codex --> CodexCLI
    Gemini --> GeminiCLI
    Copilot --> CopilotCLI
    Ollama --> OllamaAPI
    LlamaCpp --> OpenAICompat

    style CLI fill:#3b82f6,stroke:#3b82f6,color:#fff
    style WebUI fill:#3b82f6,stroke:#3b82f6,color:#fff
    style Engine fill:#60a5fa,stroke:#60a5fa,color:#fff
    style Workflow fill:#10b981,stroke:#10b981,color:#fff
    style Offline fill:#f59e0b,stroke:#d97706,color:#fff
    style Fallback fill:#a78bfa,stroke:#7c3aed,color:#fff

1. Interface Layer

User-facing interfaces: CLI and Web UI

2. Orchestration Layer

Core business logic and workflow management

3. Cross-Cutting Layer

Security, caching, metrics, and logging

4. Adapter Layer

AI agent integrations with uniform interface

5. External Services

Third-party AI CLI tools

Design Patterns

Adapter Pattern

Uniform interface to different AI CLIs

Strategy Pattern

Configurable workflow strategies

Observer Pattern

Real-time UI updates via Socket.IO

Factory Pattern

Agent and workflow creation

Singleton Pattern

Config and metrics managers

Decorator Pattern

Retry, cache, and logging decorators

Standalone Agentic Team Runtime

Agentic Team is a separate runtime path from orchestrator workflows. It models a true software team where roles route work to each other at runtime, and only the lead role can finalize the user-facing response.

This path has its own backend/UI (agentic_team/orchestrator/ui/app.py), its own CLI REPL (./ai-orchestrator agentic-shell), dedicated validation, and live communication graph/timeline streaming.

Runtime Separation and Role Routing

flowchart LR
    subgraph Orchestrator Path
      OCLI[ai-orchestrator run/shell] --> OCORE[orchestrator.core]
      OCORE --> OWF[predefined workflow steps]
    end

    subgraph Agentic Team Path
      AUI[agentic_team/orchestrator/ui/app.py]
      ASHELL[ai-orchestrator agentic-shell]
      AUI --> AENGINE[agentic_team.engine]
      ASHELL --> AENGINE
      AENGINE --> PM[project_manager]
      PM --> SA[software_architect]
      PM --> SD[software_developer]
      PM --> QA[qa_engineer]
      PM --> DO[devops_engineer]
      SA --> SD
      SD --> QA
      SD --> DO
      QA --> PM
      DO --> PM
      PM --> USER[final response to user]
    end

    style OCLI fill:#3b82f6,stroke:#3b82f6,color:#fff
    style OCORE fill:#2563eb,stroke:#2563eb,color:#fff
    style AENGINE fill:#10b981,stroke:#10b981,color:#fff
    style PM fill:#f59e0b,stroke:#d97706,color:#fff
    style USER fill:#60a5fa,stroke:#60a5fa,color:#fff

True Runtime Routing

Any role can route to any team role at runtime
Decision output supports message and finalize
Non-lead finalize attempts are normalized to lead handoff
Invalid destinations are rerouted to lead safely

Live Communications

Socket events: team_turn, team_communication, progress_log
Directed live graph with edge counts and latest path highlight
Readable communication stream panel in dedicated UI section
Session snapshots preserve turn and communication history

Config + Validation Gate

Guided config editor for agentic_team.roles
Role-to-agent mappings validated before every run
Missing/unavailable mappings block execution early
Defaults are merged when team config is incomplete

Production Controls

Execution IDs, timestamps, duration, and turn stats
Fallback manager integration for recoverable failures
Repeat-route escalation protection to lead role
Runtime settings for message and routing safety limits

Context Integration

Auto-stores tasks in graph context memory
Retrieves relevant past context before execution
Learns from mistakes across sessions
Pattern recognition for recurring issues

Multi-Turn Orchestration

Complex multi-step task decomposition
Role-based specialization per turn
Automatic handoff with context preservation
Configurable turn limits and timeouts

Role	Purpose	Typical Outgoing Handoffs
project_manager	Lead, planning, gating final response	architect, developer, QA, DevOps, or finalize to user
software_architect	Architecture and constraints	developer or PM
software_developer	Implementation	QA, DevOps, or PM
qa_engineer	Validation and regressions	developer or PM
devops_engineer	Runtime and deployability	developer or PM

Example Communication Sequence

sequenceDiagram
    participant PM as project_manager (claude)
    participant DEV as software_developer (codex)
    participant QA as qa_engineer (gemini)
    participant USER as user

    PM->>DEV: action=message
"Implement endpoint + tests"
    DEV->>QA: action=message
"Implementation complete, validate"
    QA->>PM: action=message
"Validation passed"
    PM->>USER: action=finalize
"Ready to ship"

Agentic Team Run Commands

# Start standalone UI backend
./start-agentic-ui.sh

# Start standalone REPL
./ai-orchestrator agentic-shell

# Inspect team mappings in REPL
/team
/validate

# Full docs (protocol, examples, failure handling)
open AGENTIC_TEAM.md

Graphify - Codebase Knowledge Graphs

The fifth standalone system in the project. Graphify turns any directory into a queryable knowledge graph using deterministic AST analysis - no LLM required for code. It supports 19 programming languages via tree-sitter grammars, provides a full REST API with 34+ endpoints, interactive HTML visualization, Obsidian vault export with color-coded graph view, and multi-format export. Built for enterprise-grade production use with thread-safe SQLite + FTS5 storage, file watching for incremental rebuilds, and project-scoped isolation.

Graphify Architecture

graph TB
    subgraph Input["Input Layer"]
        CLI["CLI (Click)"]
        API["REST API (Flask)"]
        Watch["File Watcher"]
    end

    subgraph Core["Core Engine"]
        Scanner["Scanner"]
        Cache["SHA-256 Cache"]
        Graph["GraphStore (SQLite + FTS5)"]
    end

    subgraph Analyzers["Language Analyzers (19 languages)"]
        PY["Python"]
        JS["JavaScript"]
        TS["TypeScript"]
        GO["Go"]
        RS["Rust"]
        JV["Java"]
        MORE["C, C++, Ruby, C#, Kotlin, Scala, PHP, Swift, Lua, Zig, Elixir, ObjC"]
    end

    subgraph Output["Output Layer"]
        HTML["HTML Visualization (vis.js)"]
        JSON["JSON Export"]
        GML["GraphML Export"]
        DOT["DOT / Graphviz"]
        MD["Markdown Report"]
        OBS["Obsidian Vault"]
    end

    CLI --> Scanner
    API --> Graph
    Watch --> Scanner
    Scanner --> Cache
    Scanner --> Analyzers
    Analyzers --> Graph
    Graph --> Output

19-Language AST Analysis

Tree-sitter grammars for deterministic parsing
Extracts classes, functions, imports, call graphs
Rationale comments (WHY, HACK, NOTE, TODO)
Docstrings, decorators, and type annotations
Zero LLM cost - fully local analysis

Enterprise Graph Store

SQLite with WAL mode for concurrent reads
FTS5 full-text search on all node content
Thread-local connections for safety
SHA-256 file caching - only re-analyze changed files
Project-scoped isolation with deterministic IDs

REST API (34+ Endpoints)

Full CRUD for nodes, edges, and projects
Search, query, and graph traversal endpoints
Analytics: god nodes, hotspots, communities
Snapshot management and health checks
CORS support with configurable origins

Visualization & Export

Interactive HTML graph with vis.js - click, search, filter
Obsidian vault export with [[wikilinks]], typed folders, and graph-view color groups
JSON export for downstream tooling
GraphML for Gephi / yEd
DOT format for Graphviz rendering
Markdown report with god nodes and statistics

Incremental & Watch Mode

File watcher detects changes and triggers rebuilds
SHA-256 cache skips unchanged files on re-scans
Configurable ignore patterns (.graphifyignore)
Debounced batch processing for rapid edits
Background-safe with proper signal handling

Graph Intelligence

God-node detection - highest-degree concepts
Hotspot analysis - files with most connections
Shortest-path queries between any two nodes
Subgraph extraction for focused analysis
Comprehensive project statistics and reports

Obsidian Vault Export

Export code graphs as Obsidian vaults
[[Wikilinks]] between nodes - classes, functions, files, tests
YAML frontmatter with type, language, tags, line ranges
Pre-configured .obsidian/graph.json with color-coded node types
_Index.md Map of Content with stats and category links
Dark theme & core plugins auto-enabled out of the box
Also available on Orchestrator & Agentic Team context graphs

Production Hardening

Schema migrations (v1→v2→v3) - automatic upgrades on open
Thread-local SQLite connections for concurrency safety
Input validation with bounded parameters (max 10,000 nodes)
Path traversal protection on all file operations
Structured exception hierarchy - 12 typed error classes
WAL mode for non-blocking reads during writes

Analytics & Reporting

Scan metrics - duration, cache rates, per-analyzer timing
Graph snapshots & diffing - track evolution over time
Community detection for module clustering
Complexity hotspot scoring across files
Comprehensive project statistics dashboard
Historical trend tracking for graph growth

Graphify Usage

# Scan a project directory
graphify scan /path/to/project

# Search the knowledge graph
graphify search "authentication" --limit 20

# Query connections between concepts
graphify query "What connects UserAuth to Database?"

# Find shortest path between nodes
graphify find-path "AuthController" "DatabasePool"

# Generate a full report
graphify report /path/to/project

# Export to multiple formats
graphify export --format json --output graph.json
graphify export --format html --output graph.html
graphify export --format graphml --output graph.graphml

# Export as Obsidian vault for interactive graph exploration
graphify export obsidian /path/to/project --output ./code-vault
# → Open ./code-vault in Obsidian, press Ctrl/Cmd+G for graph view

# Start the REST API server
graphify serve --port 5000

# Watch for file changes and rebuild incrementally
graphify watch /path/to/project

# Detect god nodes (highest connectivity)
graphify god-nodes --limit 10

# Analyze hotspots (most-connected files)
graphify hotspots --limit 10

Screenshots

Selected product views from the repository screenshot set to give a quick visual tour before diving into architecture and implementation details.

Web UI Dashboard

Workflow controls, live updates, file management, and editor integration in one interface.

Agentic Team Runtime

Role routing, communication graph, and turn timeline for multi-role execution.

Interactive Shell

Conversation-first command flow for incremental implementation and follow-up tasks.

CLI Execution Pipeline

Structured orchestration output showing workflow progress and generated artifacts.

Context graph visualization dashboard screenshot

Context Graph Dashboard

Interactive knowledge graph visualization with node inspection, analytics charts, and hybrid search across both systems.

MCP Tools REPL

Interactive MCP console for exploring and testing 34+ tools across both orchestrator and agentic team engines.

Quick Start

1

Clone Repository

git clone <repository-url>
cd AI-Coding-Tools-Collaborative

2

Install Dependencies

pip install -r requirements.txt
chmod +x ai-orchestrator

3

Verify Installation

./ai-orchestrator --help
./ai-orchestrator agents

4

Start Interactive Shell

./ai-orchestrator shell

Local/Offline Quick Start

# Start local backend (example: Ollama)
ollama serve
ollama pull codellama:13b

# Check local backend and model status
./ai-orchestrator models status

# Run local-only workflow
./ai-orchestrator run "Build a Python CLI todo app" --workflow offline-default --offline

Prerequisites

Python 3.8+ - Core runtime
Node.js 20+ - For Web UI (optional)
At least one AI CLI - Claude, Codex, Gemini, or Copilot
Optional local backend - Ollama or any OpenAI-compatible local server for offline/hybrid runs
Docker - For containerized deployment (optional)

Example Usage

# Start interactive shell
./ai-orchestrator shell

orchestrator (default) > create a REST API for user management
[OK] Task completed successfully!
[FILES] Generated Files:
  - api/routes.py
  - api/models.py

orchestrator (default) > add JWT authentication
[TIP] Detected as follow-up to previous task
✓ Authentication added!

orchestrator (default) > /save user-api-project
✓ Session saved!

Available Workflows

Workflow	Agents	Iterations	Use Case
default	Codex → Gemini → Claude	3	Production-quality code with review
quick	Codex only	1	Fast prototyping and iteration
thorough	Codex → Copilot → Gemini → Claude → Gemini	5	Mission-critical or security-sensitive
review-only	Gemini → Claude	2	Analyzing existing code
document	Claude → Gemini	2	Generating documentation
offline-default	local-code → local-instruct	2	Local-only execution in offline/air-gapped setups
hybrid	local-code → claude (fallback local-instruct)	2	Local draft with cloud review and local failover

Workflow Execution Flow

graph TD
    START([Start]) --> LOAD[Load Workflow Config]
    LOAD --> NORM[Normalize legacy and steps formats]
    NORM --> VALIDATE[Validate workflow and agent availability]
    VALIDATE --> INIT[Initialize adapters by type]
    INIT --> ITER{Iteration < Max?}

    ITER -->|Yes| STEP[Execute step with primary agent]
    STEP --> OK{Success?}
    OK -->|Yes| CTX[Update context]
    OK -->|No recoverable| FB[Run configured fallback]
    FB --> CTX
    OK -->|No non-recoverable| FAIL[Record step failure]
    FAIL --> CTX
    CTX --> CHECK{Stop criteria met?}

    CHECK -->|No| ITER
    CHECK -->|Yes| AGG[Aggregate iteration outputs]
    ITER -->|No| AGG

    AGG --> REPORT[Generate final result]
    REPORT --> END([End])

    style START fill:#3b82f6,stroke:#3b82f6,color:#fff
    style END fill:#10b981,stroke:#10b981,color:#fff
    style FB fill:#a78bfa,stroke:#7c3aed,color:#fff

Custom Workflows

Define your own workflows in orchestrator/config/agents.yaml:

agents:
  my-custom-llama:
    type: llamacpp
    endpoint: http://localhost:9000
    offline: true
    enabled: true

workflows:
  custom:
    steps:
      - agent: "my-custom-llama"
        role: "implementer"
      - agent: "gemini"
        role: "reviewer"
        fallback: "my-custom-llama"

Documentation

README

Project overview and getting started guide

Architecture

System design, patterns, and components

Features

Comprehensive feature documentation

Agentic Team

Standalone runtime, communication protocol, and examples

Setup Guide

Detailed installation and configuration

Add Agents

Guide for integrating new AI agents

Deployment

Production deployment strategies

Orchestrator

Workflow-based multi-agent orchestration

Agentic Infrastructure

Specialized agents, skills, MCP tools, context system

Graphify

Codebase knowledge graph system - architecture, API, and CLI

MCP Server

FastMCP server - 34+ tools for both engines

Context System

Graph-based memory with hybrid search

Specialized Agents

9 domain-specific agent definitions

Skills Library

22 reusable skill templates

Technology Stack

Core

Python 3.8+
Click (CLI)
Rich (Terminal)
Pydantic (Validation)

Web UI

Vue 3 & Pinia
Vite
TailwindCSS
Monaco Editor

Backend

Flask
Flask-SocketIO
Socket.IO
Gunicorn

Monitoring & Reports

Prometheus
Structlog
Grafana
Health Checks
Report Generator
Chart.js Dashboard

Testing

Pytest
Coverage
MyPy
Black

MCP

FastMCP 3.x
stdio + HTTP transports
Claude Desktop ready
10 tools, 2 resources

Resilience

Circuit Breaker
Fallback Routing
Offline Detection
Exponential Backoff

Deployment

Docker
Kubernetes
GitHub Actions
Systemd

Context & Search

SQLite + FTS5
Sentence Transformers
BM25 Index
RRF Fusion

Community & Support

GitHub Discussions

Ask questions, share ideas, and connect with other users

Join Discussions →

Issue Tracker

Report bugs, request features, and track development

View Issues →

Contributing

Help improve the project with code, docs, or ideas

Contribution Guide →

Security

Report security vulnerabilities responsibly

Security Policy →

Quick Contribution Guide

Fork the repository
Create a feature branch: git checkout -b feature/your-feature
Make your changes with tests
Run checks: make all
Commit: git commit -m "feat: add amazing feature"
Push and create a Pull Request

Built With

Python Click Rich Pydantic Vue 3 Nuxt 3 Flask FastMCP Monaco Editor Pinia Prometheus Grafana Docker Kubernetes Terraform structlog Socket.IO TailwindCSS Vite Chart.js HTTPX Tenacity PyYAML Pytest MyPy Black Bandit isort GitHub Actions Mermaid Python Click Rich Pydantic Vue 3 Nuxt 3 Flask FastMCP Monaco Editor Pinia Prometheus Grafana Docker Kubernetes Terraform structlog Socket.IO TailwindCSS Vite Chart.js HTTPX Tenacity PyYAML Pytest MyPy Black Bandit isort GitHub Actions Mermaid

See It In Action

Interactive CLI Shell

$ ./ai-orchestrator shell

Welcome to AI Orchestrator v1.0.0
Type /help for available commands

orchestrator (default) > create a Python REST API with FastAPI

[AGENT] Executing workflow: default
[STEP] Step 1/3: Codex (Implementation)
⏳ Processing...

✓ Implementation complete!

[STEP] Step 2/3: Gemini (Review)
⏳ Analyzing code...

✓ Review complete! Found 3 suggestions:
  • Add input validation
  • Include error handling
  • Add API documentation

[STEP] Step 3/3: Claude (Refinement)
⏳ Implementing improvements...

✓ Task completed successfully!

[FILES] Generated Files:
  - app/main.py (FastAPI app)
  - app/models.py (Pydantic models)
  - app/routes.py (API routes)
  - app/schemas.py (Request/response schemas)
  - tests/test_api.py (Unit tests)
  - requirements.txt (Dependencies)

Workspace: ./workspace/session-abc123

orchestrator (default) > add authentication
[TIP] Detected as follow-up to previous task

Modern Web Interface

The Web UI provides a visual interface with:

Real-time progress tracking with live updates
Monaco code editor (same as VS Code)
Pinia state management
File browser and management
Conversation mode for iterative development
Workflow and iteration visualization

Task Input

Multi-line textarea with syntax highlighting

Live Updates

Socket.IO for real-time progress

Code Editor

Full Monaco editor with IntelliSense

File Management

View, download, and manage generated files

Workflow Execution

# Run with specific workflow
./ai-orchestrator run "Build authentication system" --workflow thorough

# Custom iterations
./ai-orchestrator run "Optimize database queries" --max-iterations 5

# With verbose output
./ai-orchestrator run "Add caching layer" --workflow default --verbose

# Dry run to preview
./ai-orchestrator run "Refactor code" --dry-run

# Load previous session
./ai-orchestrator shell --load my-project
